Center Airbag Sensor Assembly: Installation

  1. INSTALL CENTER AIRBAG SENSOR ASSEMBLY
    1. Check that the ignition switch is off.
    2. Check that the cable is disconnected from the negative (-) battery terminal.
      CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
      Fig 1: Locating Center Airbag Sensor Assembly And Bolts
      G06037066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using SST, install the center airbag sensor assembly with the 3 bolts.

      SST 09961-00950

      Torque: without SST

      18 N*m (184 kgf*cm, 13 ft.*lbf)

      with SST

      11 N*m (112 kgf*cm, 8 ft.*lbf)

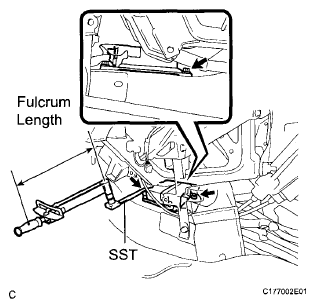

      Fig 2: Locating Center Airbag Sensor Assembly With Bolts
      G06037067Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Use a torque wrench with a fulcrum length of 250 mm (9.84 in.).
      • This torque value is effective when SST is parallel to a torque wrench.
      • If the center airbag sensor assembly has been dropped, or there are any cracks, dents or other defects in the case, bracket or connector, replace it with a new one.
      • When installing the center airbag sensor assembly, be careful that the SRS wiring does not interfere with other parts and that it is not pinched between other parts.
      • When the ignition switch is first turned to ON after the center airbag sensor assembly has been replaced, make sure that no one is in the vehicle.
    4. Connect the holder (with connectors).
      NOTE: When connecting the airbag connector, take care not to damage the airbag wire harness.
    5. Check that the waterproof sheet is properly set.
    6. Check that there is no looseness in the installation parts of the center airbag sensor assembly.
    Fig 3: Identifying Connector Holder
    G06037068Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (w/ Instrument Panel Under Cover)  (See INSTALLATION )
  3. INSTALL LOWER CENTER INSTRUMENT PANEL FINISH PANEL (for Manual Transaxle)  (See INSTALLATION )
  4. INSTALL LOWER CENTER INSTRUMENT PANEL FINISH PANEL (for Automatic Transaxle)  (See INSTALLATION )
  5. INSTALL FRONT NO. 1 CONSOLE BOX INSERT  (See INSTALLATION )
  6. INSTALL FRONT NO. 2 CONSOLE BOX INSERT  (See INSTALLATION )
  7. INSTALL FRONT CONSOLE BOX ASSEMBLY (for 2WD)  (See INSTALLATION )
  8. INSTALL FRONT CONSOLE BOX ASSEMBLY (for 4WD)  (See INSTALLATION )
  9. INSTALL CONSOLE BOX CARPET
  10. INSTALL NO. 2 SWITCH HOLE BASE  (See INSTALLATION )
  11. INSTALL FRONT UPPER CONSOLE BOX  (See INSTALLATION )
  12. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (for Manual Transaxle)  (See INSTALLATION )
  13. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (for Automatic Transaxle)  (See INSTALLATION )
  14. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle)  (See INSTALLATION )
  15. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transaxle)  (See INSTALLATION )
  16. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY  (See INSTALLATION )
  17. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  18. INSPECT SRS WARNING LIGHT
    1. Inspect the SRS warning light (See DIAGNOSIS SYSTEM ).
