Terminals Of Ecu

CENTER AIRBAG SENSOR ASSEMBLY

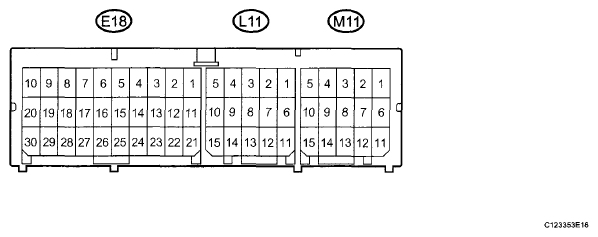

Fig 1: Identifying Center Airbag Sensor Assembly Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

CONNECTOR TERMINALS REFERENCE

Terminal No.

Terminal Symbol

Destination

E18-1

P2+

Front passenger airbag assembly (Front passenger side squib 2nd step)

E18-2

P2-

Front passenger airbag assembly (Front passenger side squib 2nd step)

E18-3

P-

Front passenger airbag assembly (Front passenger side squib)

E18-4

P+

Front passenger airbag assembly (Front passenger side squib)

E18-5

D+

Steering pad (Driver side squib)

E18-6

D-

Steering pad (Driver side squib)

E18-7

D2-

Steering pad (Driver side squib 2nd step)

E18-8

D2+

Steering pad (Driver side squib 2nd step)

E18-13

CANH

CAN communication line

E18-16

SIL

DLC3

E18-17

P-AB

Telltale light assembly (Passenger airbag ON/OFF indicator)

E18-21

IG2

IGN fuse

E18-22

CANL

CAN communication line

E18-23

PAON

Telltale light assembly (Passenger airbag ON/OFF indicator)

E18-25

Ground

E18-26

Ground

E18-27

-SR

Front airbag sensor RH

E18-28

-SL

Front airbag sensor LH

E18-29

+SR

Front airbag sensor RH

E18-30

+SL

Front airbag sensor LH

L11-1

PL-

Front seat outer belt assembly LH (Front pretensioner squib LH)

L11-2

PL+

Front seat outer belt assembly LH (Front pretensioner squib LH)

L11-6⁽¹⁾

ICL-

Curtain shield airbag assembly LH (Curtain shield squib LH)

L11-7⁽¹⁾

ICL+

Curtain shield airbag assembly LH (Curtain shield squib LH)

L11-8⁽¹⁾

BBL+

Side airbag sensor LH

L11-9⁽¹⁾

SFL+

Front seat side airbag assembly LH (Side squib LH)

L11-10⁽¹⁾

SFL-

Front seat side airbag assembly LH (Side squib LH)

L11-11

LBE+

Front seat inner belt assembly LH (Seat belt buckle switch LH)

L11-12

LBE-

Front seat inner belt assembly LH (Seat belt buckle switch LH)

L11-13

LSP-

Seat position airbag sensor

L11-14

LSP+

Seat position airbag sensor

L11-15⁽¹⁾

BBL-

Side airbag sensor LH

M11-4

PR+

Front seat outer belt assembly RH (Front pretensioner squib RH)

M11-5

PR-

Front seat outer belt assembly RH (Front pretensioner squib RH)

M11-6⁽¹⁾

SFR-

Front seat side airbag assembly RH (Side squib RH)

M11-7⁽¹⁾

SFR+

Front seat side airbag assembly RH (Side squib RH)

M11-8⁽¹⁾

BBR+

Side airbag sensor RH

M11-9⁽¹⁾

ICR+

Curtain shield airbag assembly RH (Curtain shield squib RH)

M11-10⁽¹⁾

ICR-

Curtain shield airbag assembly RH (Curtain shield squib RH)

M11-11⁽¹⁾

BBR-

Side airbag sensor RH

M11-12

FSR+

Occupant classification ECU

M11-13

FSR-

Occupant classification ECU

⁽¹⁾	w/ Front seat side airbags and curtain shield airbags
