Front Blower Motor: Inspection

INSPECT BLOWER MOTOR
1. Disconnect the connector from the blower motor.
2. Connect a positive (+) lead from the battery to terminal 2 and a negative (-) lead from the battery to terminal 1, and check that the motor operates.
  OK:

  The blower motor operates smoothly .

  If the result is not as specified, replace the blower motor.

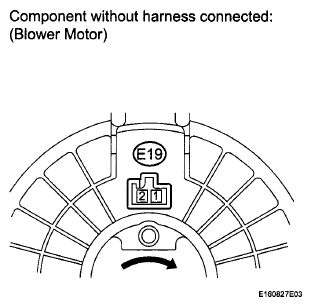

  Fig 1: Identifying Blower Motor Connector
