COMPRESSOR (for 2ZR-FE): Inspection

  1. INSPECT COMPRESSOR AND PULLEY (A/C COMPRESSOR)
    1. Disconnect the A/C compressor (compressor solenoid) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Condition Specified Condition
      B6-2 (SOL+) - B6-1 (SOL-) 20°C (68°F) 10 to 11 Ω

      If the resistance is not as specified, replace the compressor and pulley.

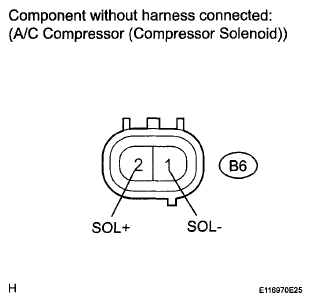

      Fig 1: Identifying Terminals Of B6 A/C Compressor Solenoid Connector
      G06037453Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
