COMPRESSOR (for 2AZ-FE): Components

Fig 1: Identifying Compressor (For 2AZ-FE) Components (1 Of 2)
G06040880Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

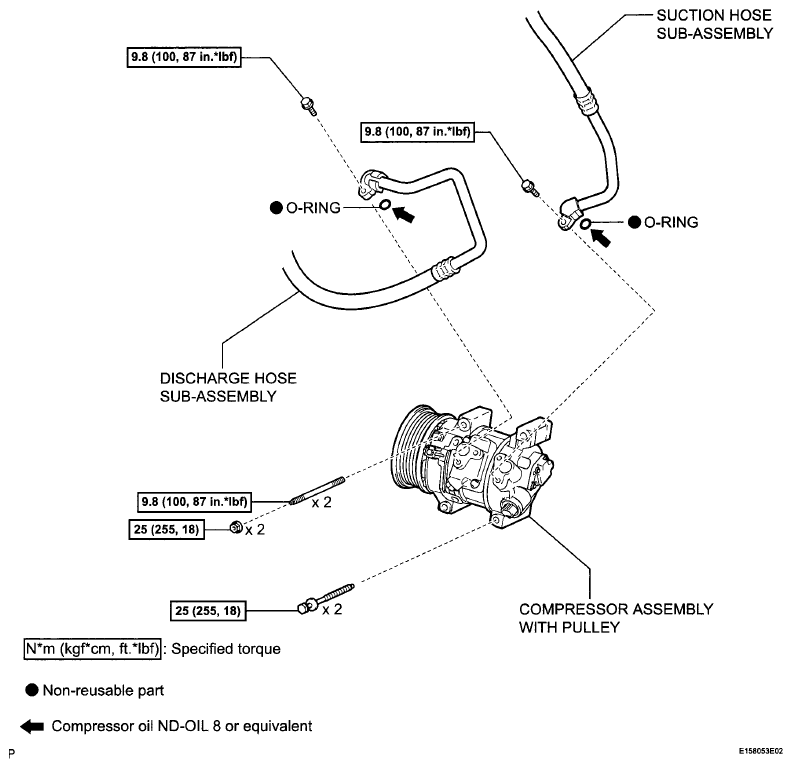

Fig 2: Compressor (For 2AZ-FE) Replacement Components With Torque Specifications (2 Of 2)
G06037667Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
