Blower Resistor: Inspection

  1. INSPECT BLOWER RESISTOR
    1. Disconnect the connector from the blower resistor.
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Condition Specified Condition
      E21-1 (HI) - E21-4 (E) Always 3.12 to 3.60 Ω
      E21-1 (HI) - E21-2 (M1) Always 1.45 to 1.67 Ω
      E21-1 (HI) - E21-3 (M2) Always 0.52 to 0.60 Ω

      If the resistance is not as specified, replace the blower resistor.

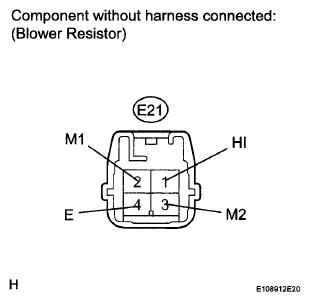

      Fig 1: Identifying Terminals Of E21 Blower Motor Connector
      G06037468Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
