Air Conditioning Panel: Reassembly

  1. INSTALL NO. 3 HEATER CONTROL SUB-ASSEMBLY
    1. Install the bulb.
      Fig 1: Locating Bulb
      G05390152Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 2 claws to install the No. 3 heater control sub-assembly.

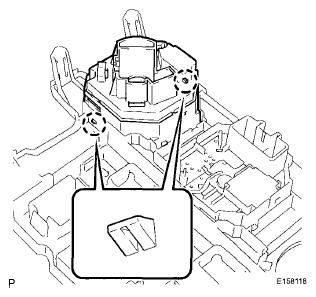

    Fig 2: Identifying No. 3 Heater Control Sub-Assembly And Claws
    G06037758Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL NO. 2 HEATER CONTROL SUB-ASSEMBLY
    1. Install the bulb.
      Fig 3: Locating Bulb
      G05390150Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 2 claws to install the No. 2 heater control sub-assembly.

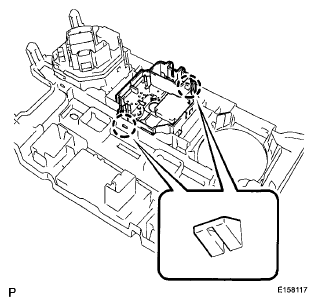

    Fig 4: Identifying No. 2 Heater Control Sub-Assembly And Claws
    G06037750Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL NO. 1 HEATER CONTROL SUB-ASSEMBLY
    1. Install the bulb.
      Fig 5: Locating Bulb
      G05390148Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 2 claws to install the No. 1 heater control sub-assembly.

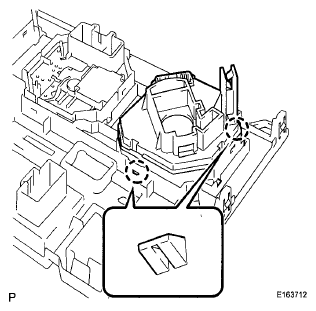

    Fig 6: Identifying No. 1 Heater Control Sub-Assembly Claws
    G06037748Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
