Air Conditioning Panel: Disassembly

  1. REMOVE NO. 1 HEATER CONTROL SUB-ASSEMBLY
    1. Disengage the 2 claws and remove the No. 1 heater control sub-assembly.
      Fig 1: Identifying No. 1 Heater Control Sub-Assembly Claws
      G06037748Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bulb.
    Fig 2: Locating Bulb
    G05390148Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE NO. 2 HEATER CONTROL SUB-ASSEMBLY
    1. Disengage the 2 claws and remove the No. 2 heater control sub-assembly.
      Fig 3: Identifying No. 2 Heater Control Sub-Assembly And Claws
      G06037750Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bulb.
    Fig 4: Locating Bulb
    G05390150Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE NO. 3 HEATER CONTROL SUB-ASSEMBLY
    1. Disengage the 2 claws and remove the No. 3 heater control sub-assembly.

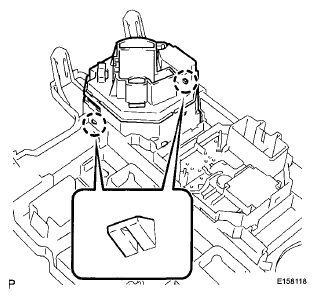

      Fig 5: Identifying No. 2 Heater Control Cable Sub-Assembly Claws
      G06037752Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bulb.
    Fig 6: Locating Bulb
    G05390152Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
