Air Conditioning Amplifier: Removal

  1. REMOVE FRONT NO. 1 CONSOLE BOX INSERT  (See REMOVAL )
  2. REMOVE AIR CONDITIONING AMPLIFIER ASSEMBLY
    1. Disconnect the connector.
    2. Remove the screw.
      Fig 1: Locating Air Conditioning Amplifier Assembly Connector And Screw
      G06037767Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

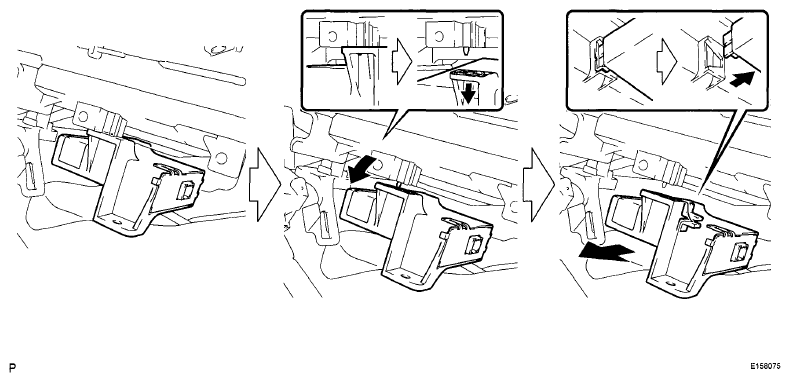

    3. Remove the air conditioning amplifier assembly as shown in the illustration.
    Fig 2: Identifying Air Conditioning Amplifier Assembly
    G06037768Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
