INSTALL VACUUM SWITCHING VALVE
1. Install the vacuum switching valve onto the air cleaner hose.
2. Connect the 2 purge line hoses to the vacuum switching valve. (A)
3. Connect the wire harness clamp. (B)
4. Connect the vacuum switching valve connector. (C)

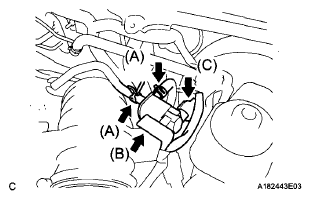

  Fig 1: Locating Vacuum Switching Valve
