Oil Pump: Reassembly

WARNING: This page is about a different variant/trim than selected.

INSTALL OIL PUMP COVER
1. Coat the drive rotor and driven rotor with engine oil.

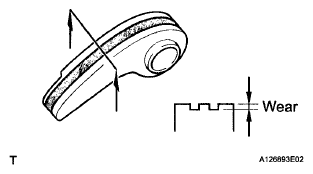

  Fig 1: Identifying Chain Tensioner Plate Wear
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

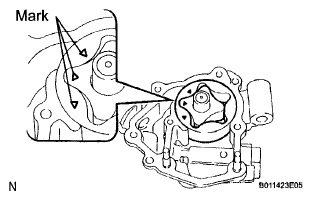

2. Place the drive and driven rotors into the oil pump with the marks facing the pump cover side.

  Fig 2: Identifying Mark On Oil Pump Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the oil pump cover with the 5 bolts.
  Torque: 8.8 N*m (90 kgf*cm, 78 in.*lbf)
INSTALL OIL PUMP RELIEF VALVE
1. Coat the relief valve with engine oil.

  Fig 3: Locating Oil Pump Cover Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Insert the relief valve and spring into the pump body hole.
3. Using a 27 mm socket wrench, install the plug.
  Torque: 49 N*m (500 kgf*cm, 36 ft.*lbf)

  Fig 4: Identifying Valve Spring, Plug And Relief Valve
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL OIL PUMP STRAINER
1. Install a new gasket and the oil strainer with the 2 nuts.
  Torque: 8.8 N*m (90 kgf*cm, 78 in.*lbf)

  Fig 5: Locating Oil Pump Strainer Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
