Valve Body Assembly: Components

WARNING: This page is about a different variant/trim than selected.
Fig 1: Identifying Valve Body Assembly Components (1 Of 3)
G06043153Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

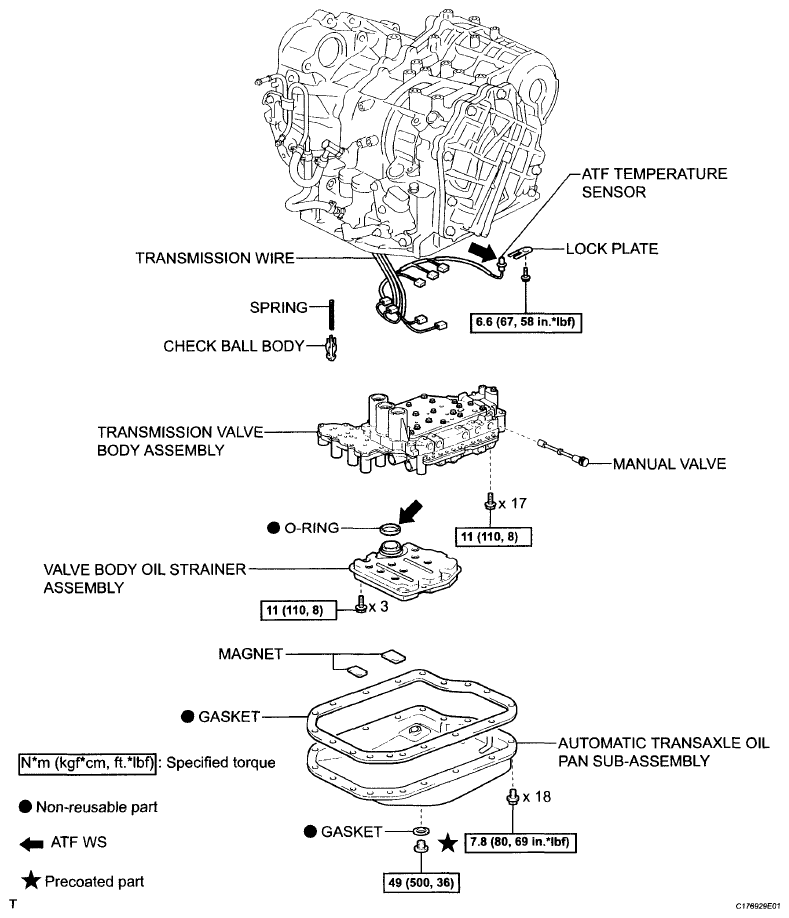

Fig 2: Valve Body Assembly Replacement Components With Torque Specifications (2 Of 3)
G06011451Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

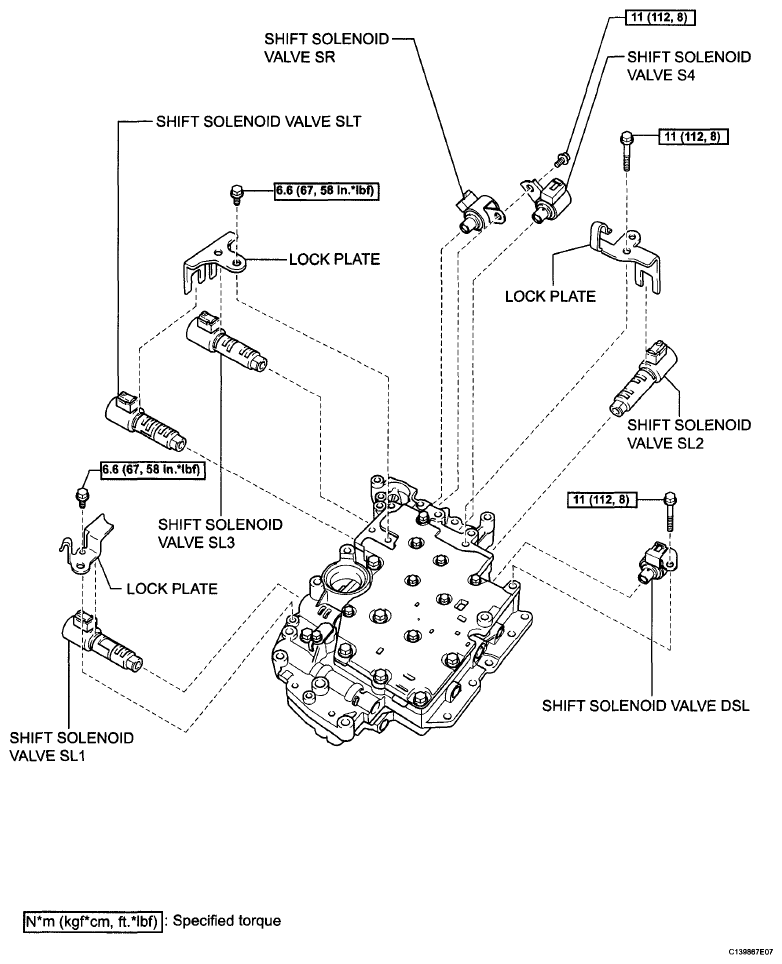

Fig 3: Valve Body Assembly Replacement Components With Torque Specifications (3 Of 3)
G06011452Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
