Transmission Control Cable: Components

WARNING: This page is about a different variant/trim than selected.
Fig 1: Transmission Control Cable Replacement Components With Torque Specifications (1 Of 3)
G06045419Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Transmission Control Cable Replacement Components With Torque Specifications (2 Of 3)
G06043231Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

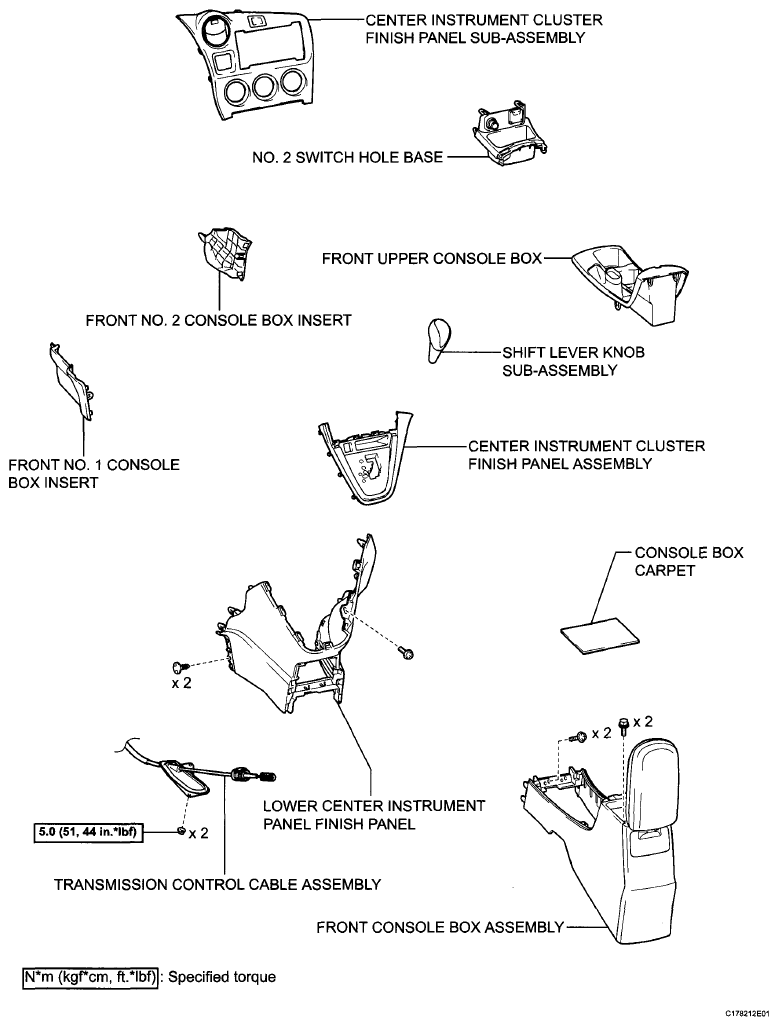

Fig 3: Transmission Control Cable Replacement Components With Torque Specifications (3 Of 3)
G06043878Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
