Section 13 (Automatic Transmission - U250E)
>>
Shift Lever
>>
Components
Shift Lever: Components
WARNING:
This page is about a different variant/trim than selected.

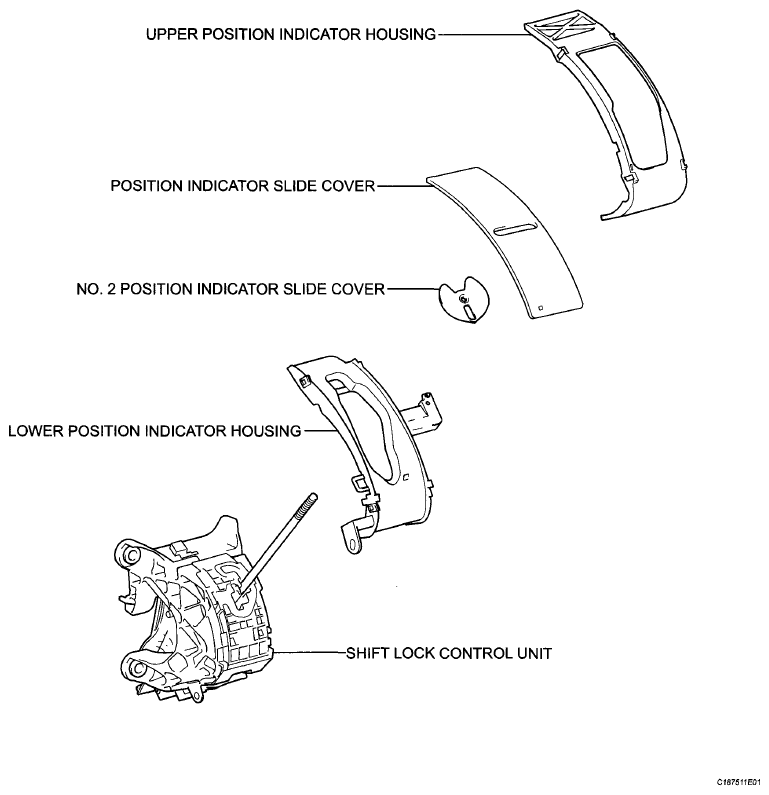

Fig 1: Identifying Shift Lever Components (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

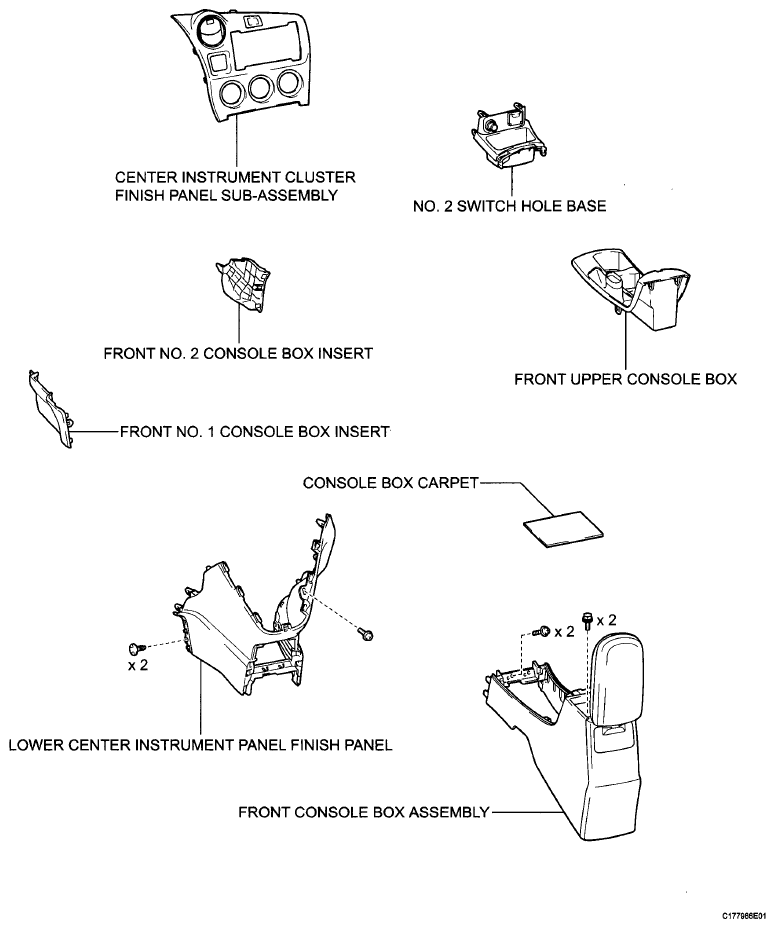

Fig 2: Shift Lever Replacement Components With Torque Specifications (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

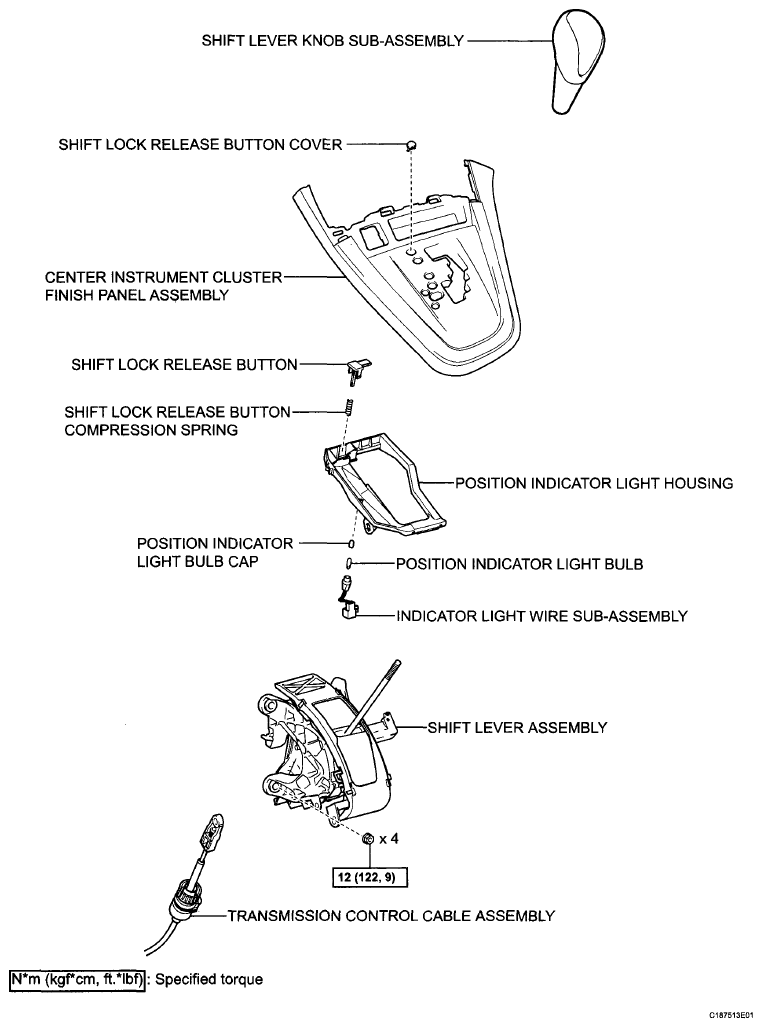

Fig 3: Identifying Shift Lever Components (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
