Oil Pump: Components

WARNING: This page is about a different variant/trim than selected.

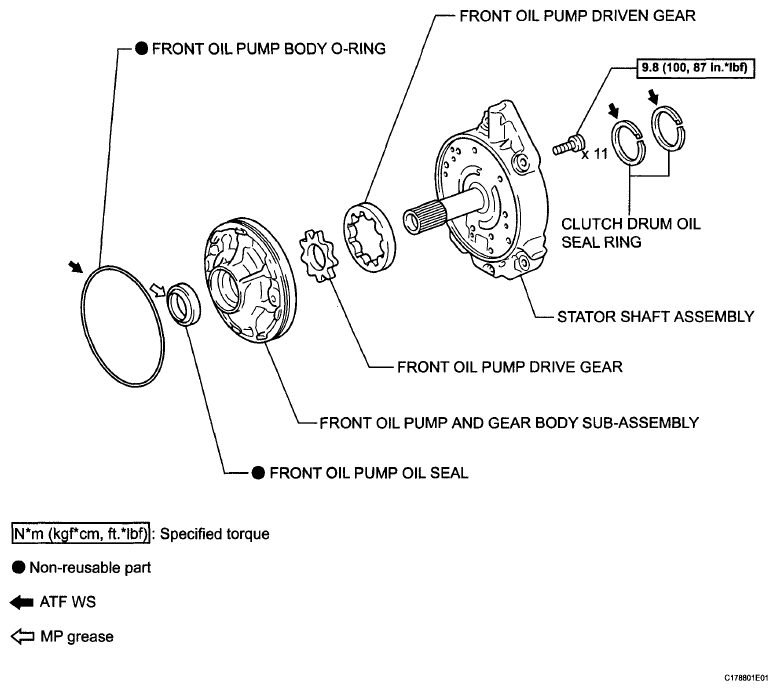

Fig 1: Oil Pump Replacement Components With Torque Specifications
G06011949Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
