Automatic Transaxle Unit: Components

WARNING: This page is about a different variant/trim than selected.

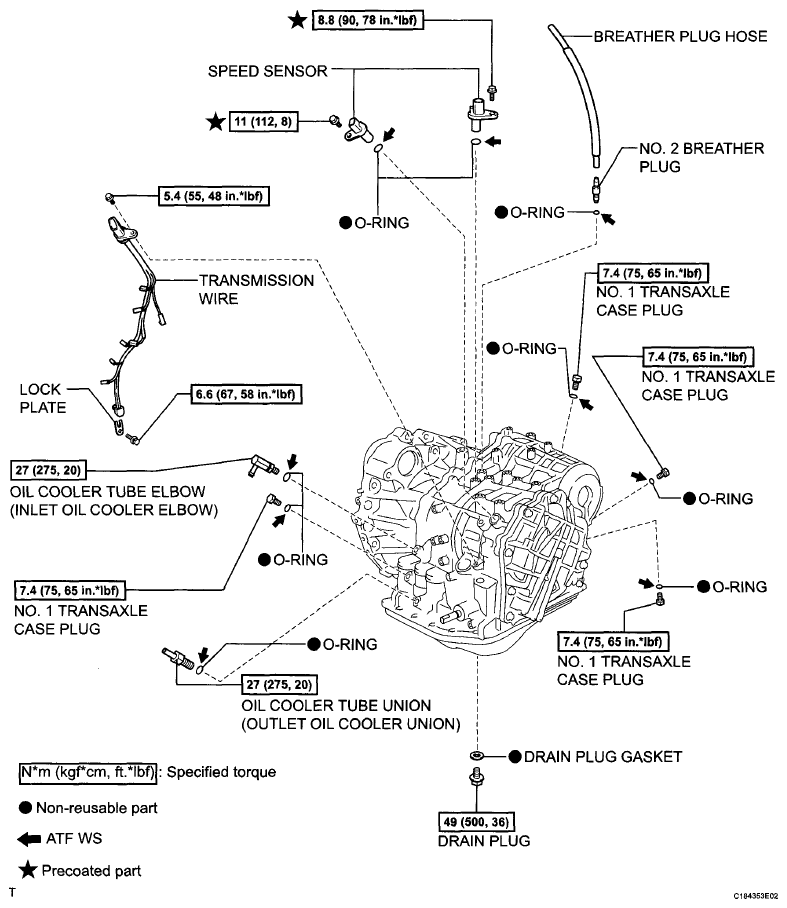

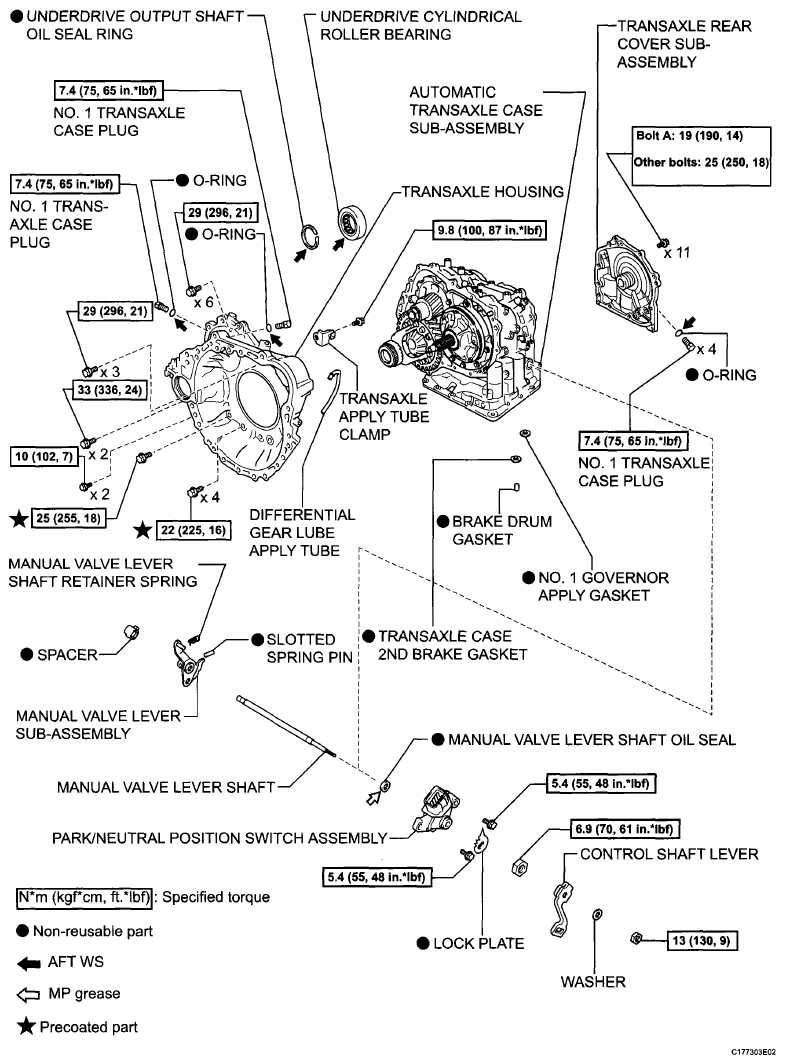

Fig 1: Automatic Transaxle Unit Components With Torque Specifications (1 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

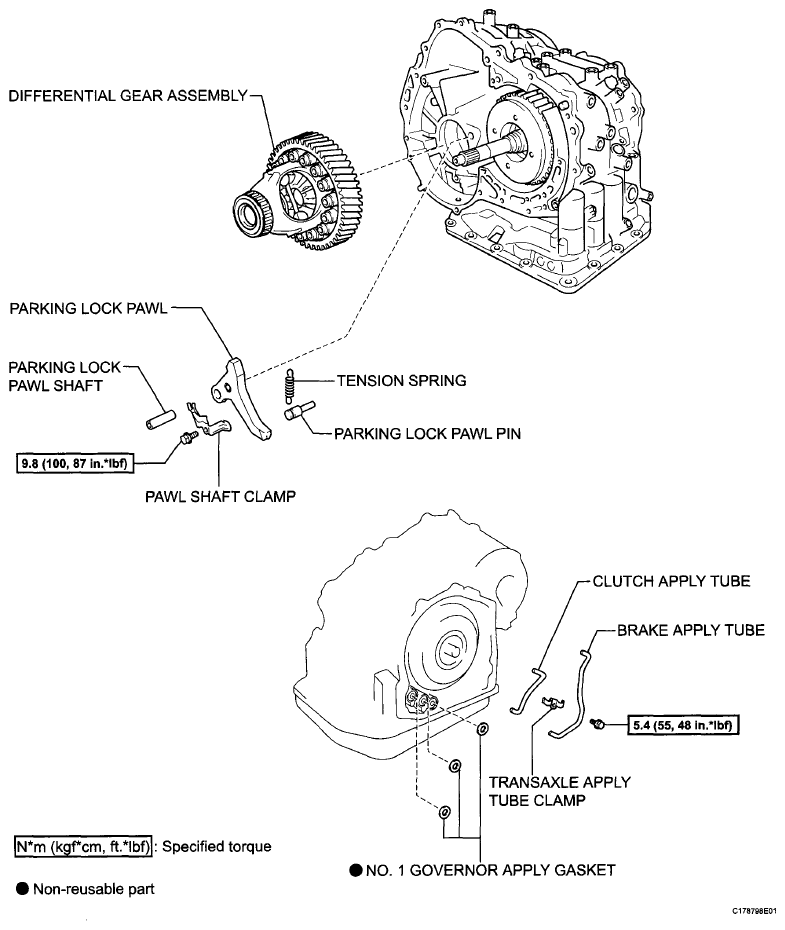

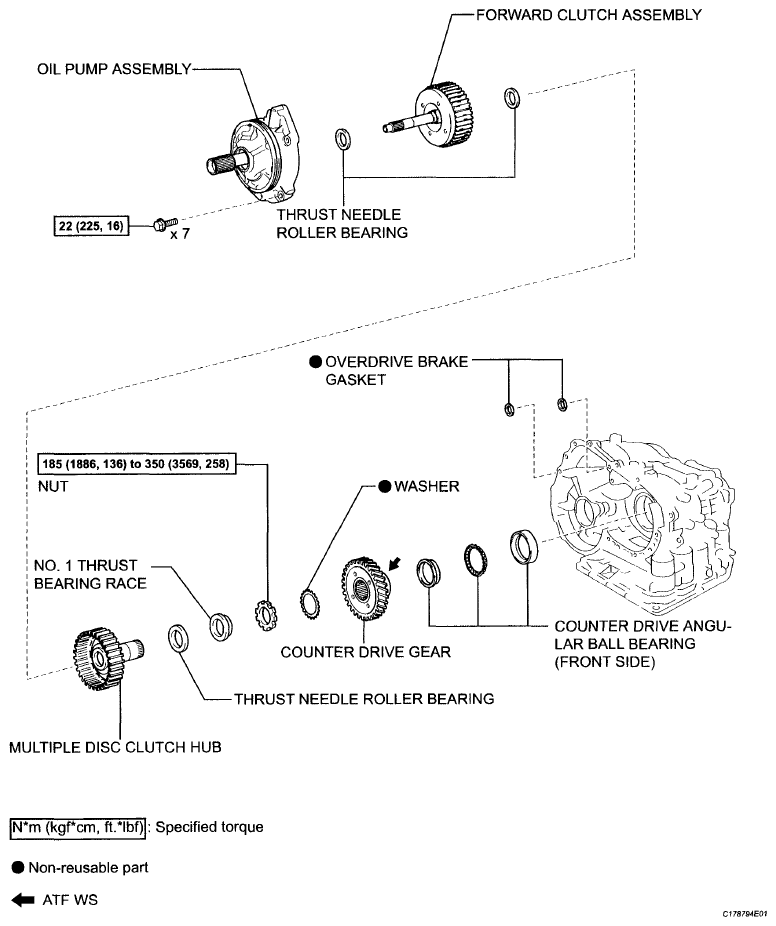

Fig 2: Automatic Transaxle Unit Components With Torque Specifications (2 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

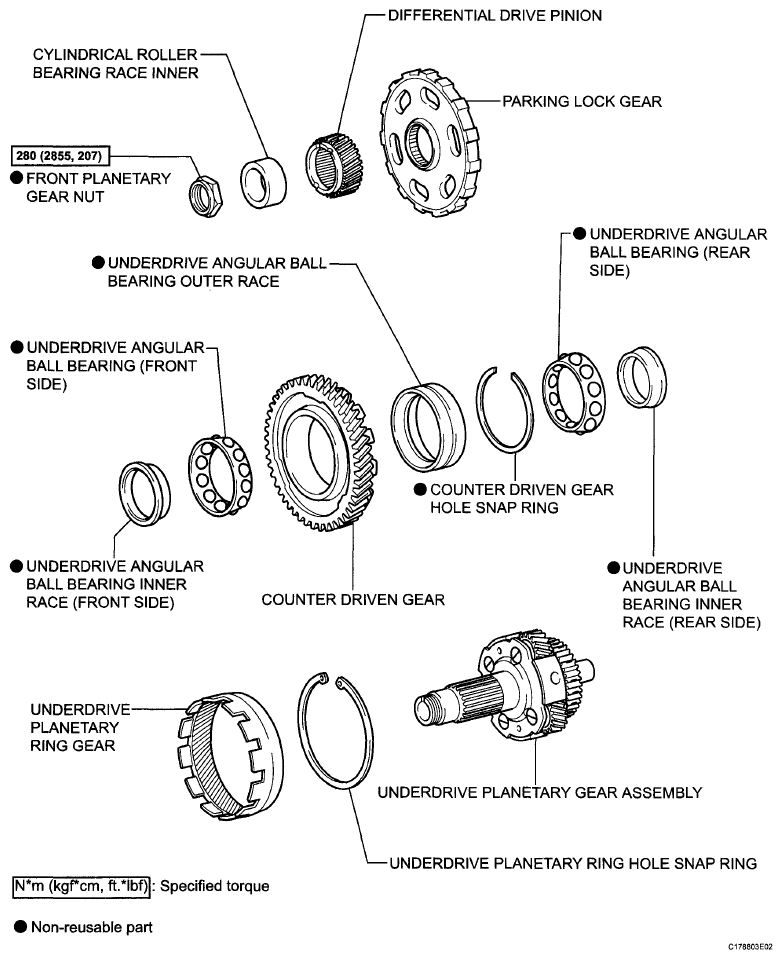

Fig 3: Automatic Transaxle Unit Components With Torque Specifications (3 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Automatic Transaxle Unit Components With Torque Specifications (4 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

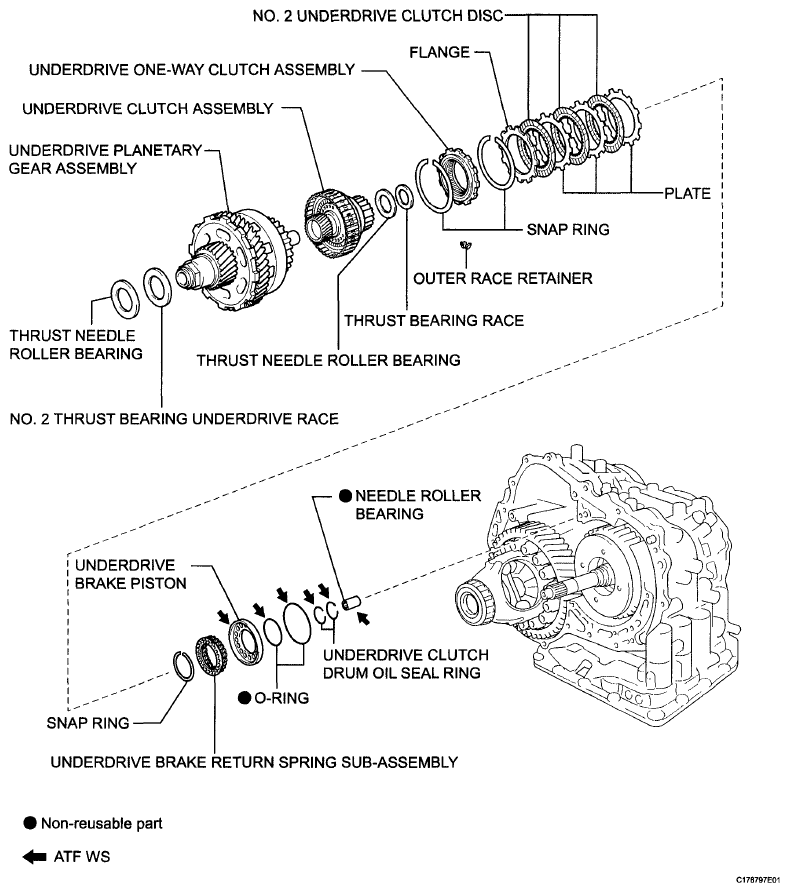

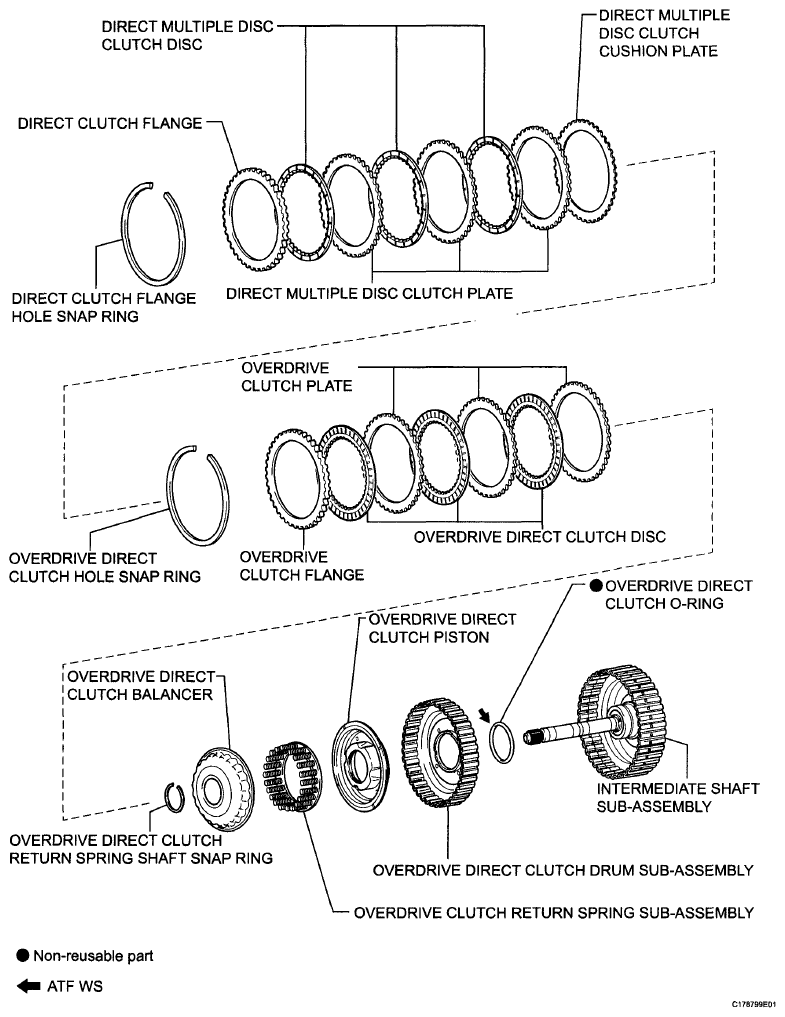

Fig 5: Identifying Automatic Transaxle Unit Components (5 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

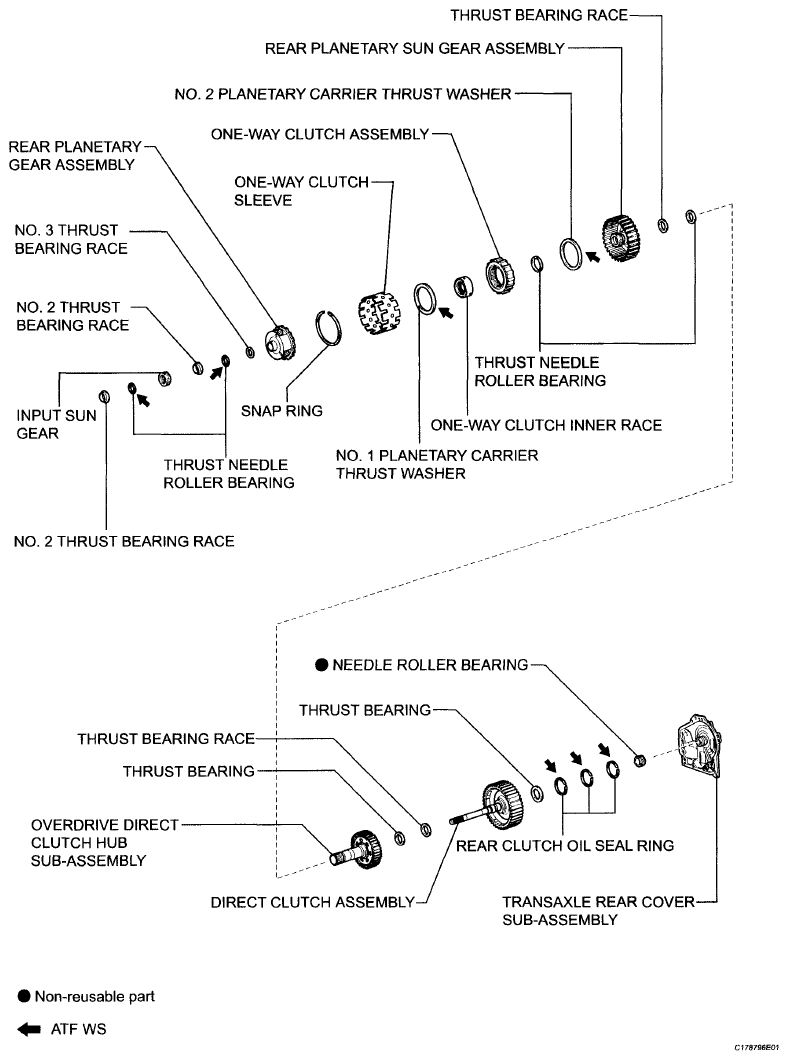

Fig 6: Identifying Automatic Transaxle Unit Components (6 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

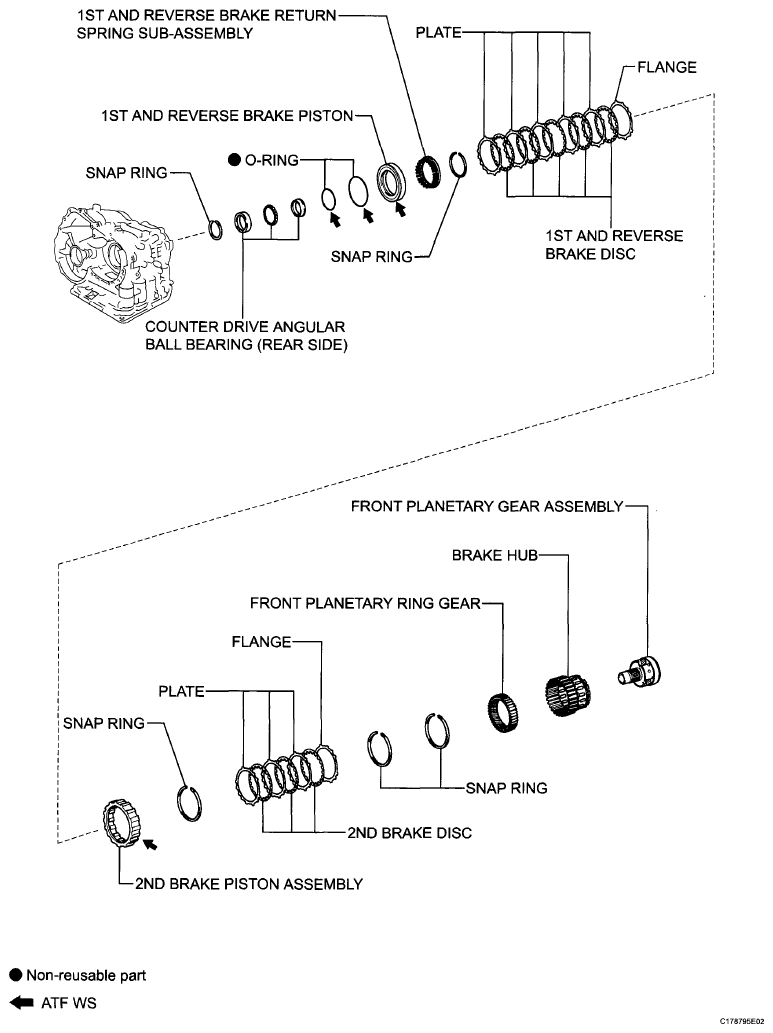

Fig 7: Identifying Automatic Transaxle Unit Components (7 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Automatic Transaxle Unit Components With Torque Specifications (8 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

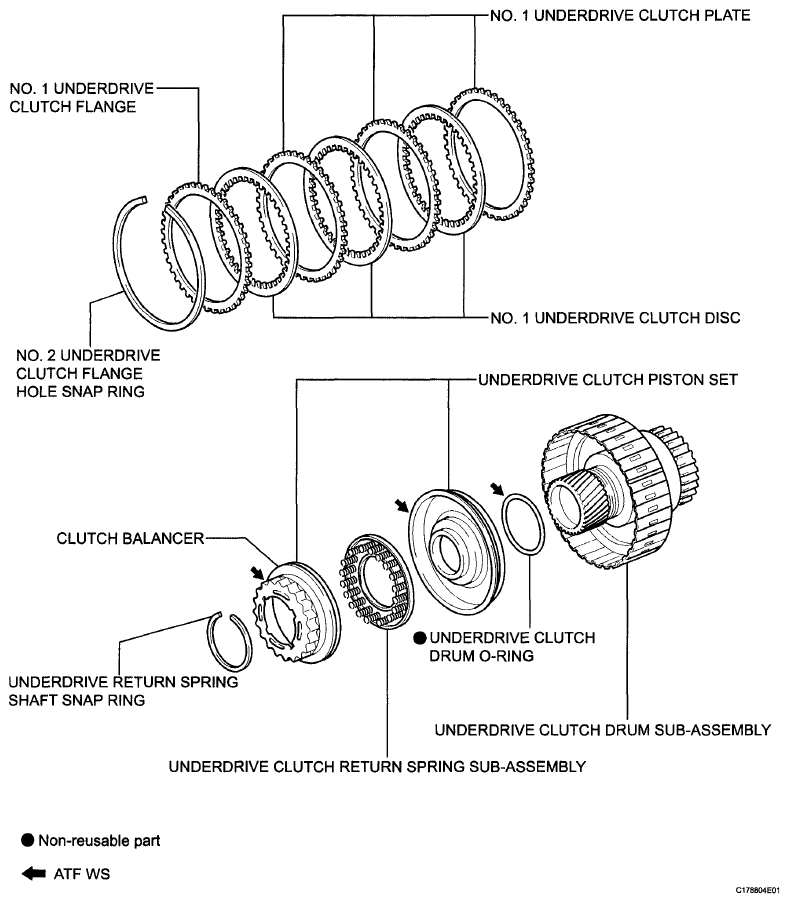

Fig 9: Identifying Automatic Transaxle Unit Components (9 Of 13)

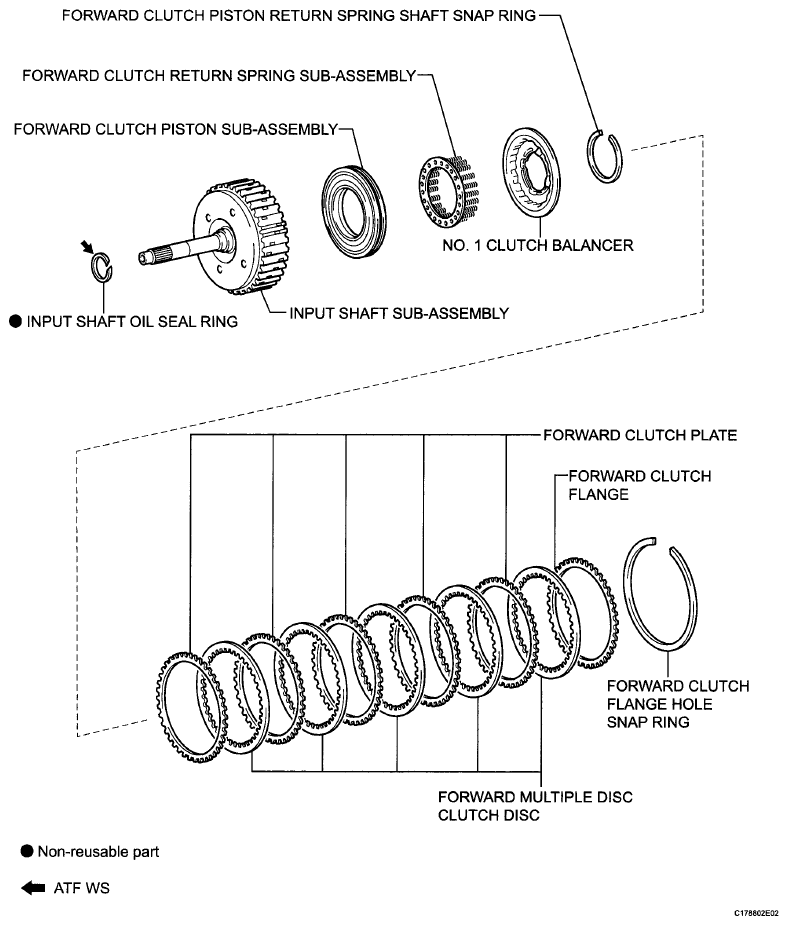

Fig 10: Identifying Automatic Transaxle Unit Components (10 Of 13)

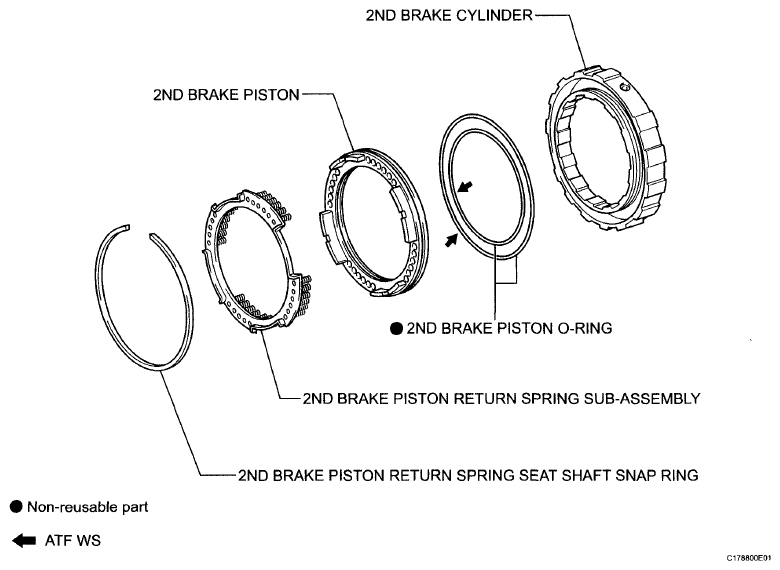

Fig 11: Identifying Automatic Transaxle Unit Components (11 Of 13)

Fig 12: Automatic Transaxle Unit Components With Torque Specifications (12 Of 13)

Fig 13: Identifying Automatic Transaxle Unit Components (13 Of 13)
