Terminals Of ECM
WARNING: This page is about a different variant/trim than selected.
- ECM
HINT:
Each ECM terminal's standard voltage is shown in the table below.
In the table, first follow the information under "Condition". Look under "Terminal No. (Symbols)" for the terminals to inspected. The standard voltage between the terminals is shown under "Specified Condition".

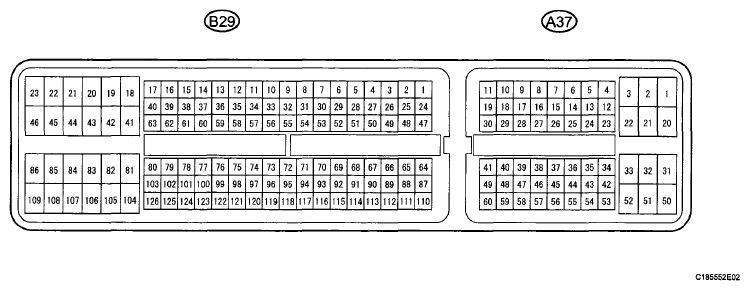

Use the illustration above as a reference for the ECM terminals.
CONNECTOR TERMINAL WIRING COLOR REFERENCETerminals No. (Symbols) Wiring Color Terminal Description Condition Specified Condition B29-56 (D) - B29-104 (E1) P-G - BR D shift position switch signal Ignition switch ON and shift lever D and S position 11 to 14 V Ignition switch ON and shift lever except D and S position Below 1 V B29-53 (R) - B29-104 (E1) R - BR R shift position switch signal Ignition switch ON and shift lever R position 11 to 14 V Ignition switch ON and shift lever except R position Below 1 V A37-8 (SPD) - B29-104 (E1) V - BR Speed signal Vehicle speed 20 km/h (12 mph) Pulse generation (See hwaveform 8) A37-36 (STP) - B29-104 (E1) L - BR Stop light switch signal Brake pedal is depressed 7.5 to 14 V Brake pedal is released Below 1.5 V A37-51 (SFTD) - B29-104 (E1) R - BR Down shift switch signal Ignition switch ON and shift lever S position 11 to 14 V Ignition switch ON and shift lever"-" position (Down shift) Below 1 V A37-16 (SFTU) - B29-104 (E1) W - BR Up shift switch signal Ignition switch ON and shift lever S position 11 to 14 V Ignition switch ON and shift lever "+" position (Up shift) Below 1 V B29-74 (S) - B29-104 (E1) L - BR S shift position switch signal Ignition switch ON and shift lever S position 11 to 14 V Ignition switch ON and shift lever except S position Below 1 V B29-73 (P) - B29-104 (E1) V - BR Park position switch signal Ignition switch ON and shift lever P position 11 to 14 V Ignition switch ON and shift lever except P position Below 1 V B29-54 (N) - B29-104 (E1) B - BR Neutral position switch signal Ignition switch ON and shift lever N position 11 to 14 V Ignition switch ON and shift lever except N position Below 1 V B29-52 (NSW) - B29-104 (E1) W - BR Park neutral switch signal Ignition switch ON and shift lever P and N position Below 2 V Ignition switch ON and shift lever except P and N position 11 to 14 V B29-79 (DSL) - B29-104 (E1) R - BR DSL solenoid signal Vehicle speed 65 km/h (40 mph), lock-up (ON to OFF) Pulse generation (See bwaveform 2) B29-80 (SR) - B29-104 (E1) Y - BR SR solenoid signal Ignition switch ON Below 1 V 3rd, 4th or 5th gear 11 to 14 V 1st or 2nd gear Below 1 V B29-78 (S4) - B29-104 (E1) W - BR S4 solenoid signal Ignition switch ON Below 1 V 5th gear 11 to 14 V Except 5th gear Below 1 V B29-60 (SL3+) - B29-61 (SL3-) V - B SL3 solenoid signal Engine idle speed Pulse generation (See cwaveform 3) B29-58 (SL2+) - B29-59 (SL2-) GR - L SL2 solenoid signal Engine idle speed Pulse generation (See dwaveform 4) B29-57 (SL1+) - B29-77 (SL1-) G - P-G SL1 solenoid signal Engine idle speed Pulse generation (See ewaveform 5) B29-101 (NC+) - B29-102 (NC-) R - W Speed sensor (NC) signal Vehicle speed 30 km/h (19 mph): (3rd gear) Engine speed 1,400 rpm Pulse generation (See fwaveform 6) B29-125 (NT+) - B29-124 (NT-) B - Y Speed sensor (NT) signal Vehicle speed 20 km/h (12 mph) Pulse generation (See gwaveform 7) B29-76 (SLT+) - B29-75 (SLT-) LG - V SLT solenoid signal Engine idle speed Pulse generation (See awaveform 1) B29-72 (THO1) - B29-95 (ETHO) Y - P ATF temperature sensor signal ATF temperature: 115°C (239°F) or more Below 1.5 V - Waveform 1
Reference:
WAVEFORM REFERENCETerminal SLT+ - SLT- Tool setting 5 V/DIV, 1 ms/DIV Vehicle condition Engine idle speed - Waveform 2
Reference:
WAVEFORM REFERENCETerminal DSL - E1 Tool setting 10 V/DIV, 100 ms/DIV Vehicle condition Vehicle speed 65 km/h (40 mph), lock-up (ON to OFF) - Waveform 3
Reference:
WAVEFORM REFERENCETerminal SL3+ - SL3- Tool setting 5 V/DIV, 1 ms/DIV Vehicle condition Engine idle speed - Waveform 4
Reference:
WAVEFORM REFERENCETerminal SL2+ - SL2- Tool setting 5 V/DIV, 1 ms/DIV Vehicle condition Engine idle speed - Waveform 5
Reference:
WAVEFORM REFERENCETerminal SL1+ - SL1- Tool setting 5 V/DIV, 1 ms/DIV Vehicle condition Engine idle speed - Waveform 6
Reference:
WAVEFORM REFERENCETerminal NC+ - NC- Tool setting 1 V/DIV, 1 ms/DIV Vehicle condition Vehicle speed 30 km/h (19 mph): (3rd gear)
Engine speed 1.400 rpm - Waveform 7
Reference:
WAVEFORM REFERENCETerminal NT+ - NT- Tool setting 5 V/DIV, 0.5 ms/DIV Vehicle condition Vehicle speed 20 km/h (12 mph) - Waveform 8
Reference:
WAVEFORM REFERENCETerminal SPD - E1 Tool setting 5 V/DIV, 20 ms/DIV Vehicle condition Vehicle speed 20 km/h (12 mph) HINT:
Depending on the vehicle, the output waveform voltage, influenced by optionally installed systems, may become 5V.
- Waveform 1
