Section 12 (Manual Transmission - E351)
>>
Output Shaft
>>
Components
Output Shaft: Components
WARNING:
This page is about a different variant/trim than selected.

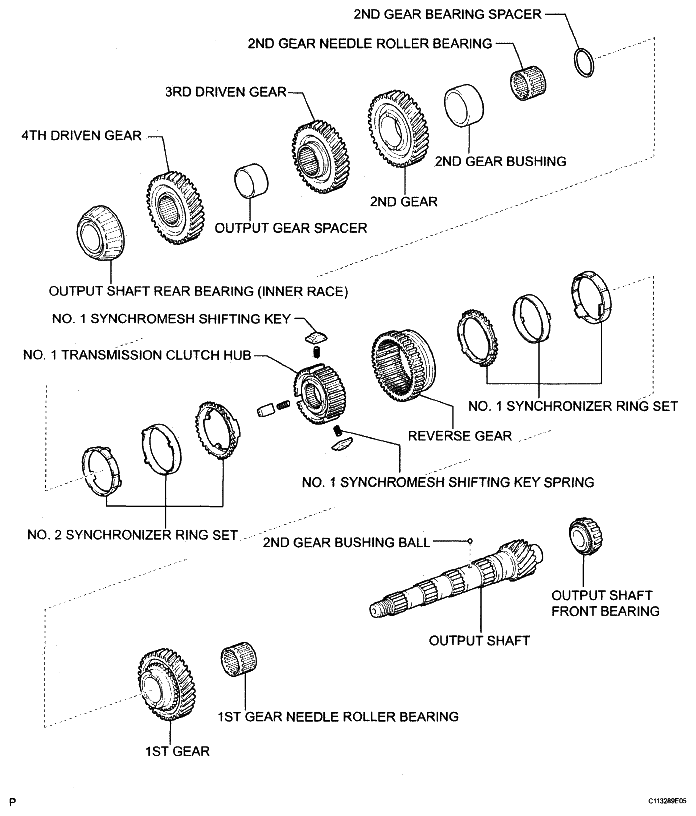

Fig 1: Identifying Output Shaft Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
