Park / Neutral Position Switch: Installation

WARNING: This page is about a different variant/trim than selected.

INSTALL PARK/NEUTRAL POSITION SWITCH ASSEMBLY
1. Install the switch to the manual valve shaft.
2. Temporarily install the 2 bolts.

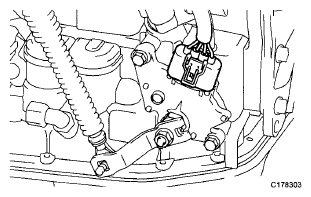

  Fig 1: Locating Park/Neutral Position Switch Assembly Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install a new lock plate and tighten the manual valve shaft nut.
  Torque: 6.9 N*m (70 kgf*cm, 61 in.*lbf)
4. Temporarily install the control shaft lever.

  Fig 2: Identifying Manual Valve Shaft Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Turn the lever counterclockwise until it stops, then turn it clockwise 2 notches.
6. Remove the control shaft lever.

  Fig 3: Turning Lever
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Align the groove with the neutral basic line.
8. Hold the switch in this position and tighten the 2 bolts.
  Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

  Fig 4: Locating Neutral Basic Line And Groove
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. Using a screwdriver, stake the nut with the lock plate.

  Fig 5: Staking Nut With Lock Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
10. Install the control shaft lever with the washer and nut.
  Torque: 13 N*m (132 kgf*cm, 10 ft.*lbf)

  Fig 6: Locating Control Shaft Lever With Washer And Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
11. Connect the switch connector.
Fig 7: Identifying Switch Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL TRANSMISSION CONTROL CABLE ASSEMBLY
1. Connect the transmission control cable to the bracket with a new clip.
2. Connect the transmission control cable assembly to the control shaft lever with the nut.
  Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)
INSTALL BATTERY CARRIER (See INSTALLATION )
INSTALL BATTERY (See INSTALLATION )

Fig 8: Locating Control Shaft Lever Nut
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL (See INSTALLATION )
INSPECT SHIFT LEVER POSITION (See ADJUSTMENT )
ADJUST SHIFT LEVER POSITION (See ADJUSTMENT )
INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY (See ON-VEHICLE INSPECTION )
