Park / Neutral Position Switch: Adjustment

WARNING: This page is about a different variant/trim than selected.
  1. ADJUST PARK/NEUTRAL POSITION SWITCH ASSEMBLY
    1. Loosen the 2 bolts of the switch and move the shift lever to N.
    2. Align the groove with the neutral basic line.
    3. Hold the switch in this position and tighten the 2 bolts.

      Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

    4. After adjustment, perform the switch inspection (See ON-VEHICLE INSPECTION ).

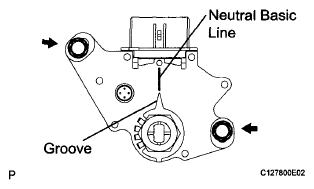

    Fig 1: Identifying Neutral Basic Line And Groove
    G06043188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
