Oil Pump: Reassembly

WARNING: This page is about a different variant/trim than selected.

INSTALL FRONT OIL PUMP OIL SEAL
1. Using SST and a hammer, install a new oil seal to the pump.
  SST 09350-32014 (09351-32140)

  Standard depth:

  -0.5 to 0.5 mm (-0.0197 to 0.0197 in.)

  Fig 1: Installing Oil Seal To Pump
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  The seal end should be flush with the outer edge of the oil pump.
2. Coat the lip of the oil seal with petroleum jelly.
INSTALL FRONT OIL PUMP BODY O-RING
1. Coat a new O-ring with ATF, and install it to the oil pump body.
Fig 2: Installing Front Oil Pump Body O-Ring
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT OIL PUMP DRIVEN GEAR
1. Coat the front oil pump driven gear with ATF, and install it to the oil pump body with the marked side facing up.
Fig 3: Identifying Front Oil Pump Driven Gear Mark
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT OIL PUMP DRIVE GEAR
1. Coat the front oil pump drive gear with ATF, and install it to the oil pump body with the marked side facing up.

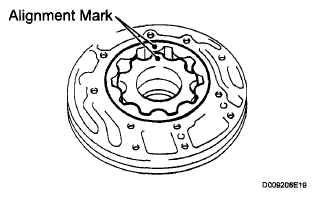

Fig 4: Identifying Front Oil Pump Drive Gear Alignment Marks
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL STATOR SHAFT ASSEMBLY
1. Set the stator shaft by aligning each bolt hole.
2. Using a T30 "TORX" socket wrench, install the 11 bolts.
  Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)

  Fig 5: Identifying Stator Shaft Assembly Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CLUTCH DRUM OIL SEAL RING
1. Install the 2 clutch drum oil seal rings.
  NOTE: Do not expand the ring ends excessively.
INSPECT OIL PUMP ASSEMBLY (See INSPECTION )

Fig 6: Identifying Clutch Drum Oil Seal Ring
