Parts Location

WARNING: This page is about a different variant/trim than selected.
Fig 1: Identifying Automatic Transaxle System Part Location (1 Of 2)
G06043056Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

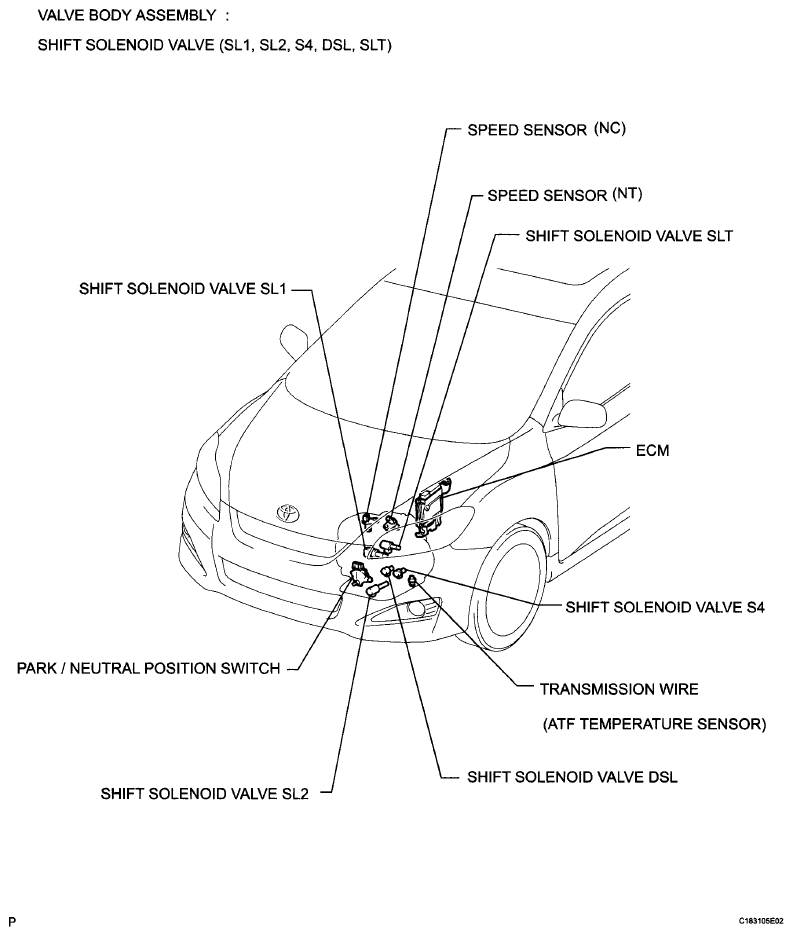

Fig 2: Identifying Automatic Transaxle System Part Location (2 Of 2)
G06043057Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
