Front Blower Motor: Inspection: Inspection

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT BLOWER MOTOR
1. Remove the blower motor.
2. Disconnect the connector from the cooling unit motor sub-assembly w/ fan.
3. Connect the positive (+) lead to terminal 3 of the blower motor connector, and the negative (-) lead to terminal 1.

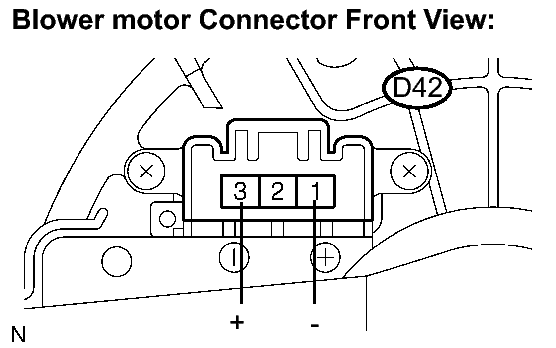

  Fig 1: Identifying D42 Blower Motor Connector Terminal Identification
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  OK

  Blower motor operates smoothly.

  NOTE:
  While using the battery during inspection, do not bring the positive and negative tester probes too close to each other as a short circuit may occur.
