Blower Unit: Components: Illustration

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

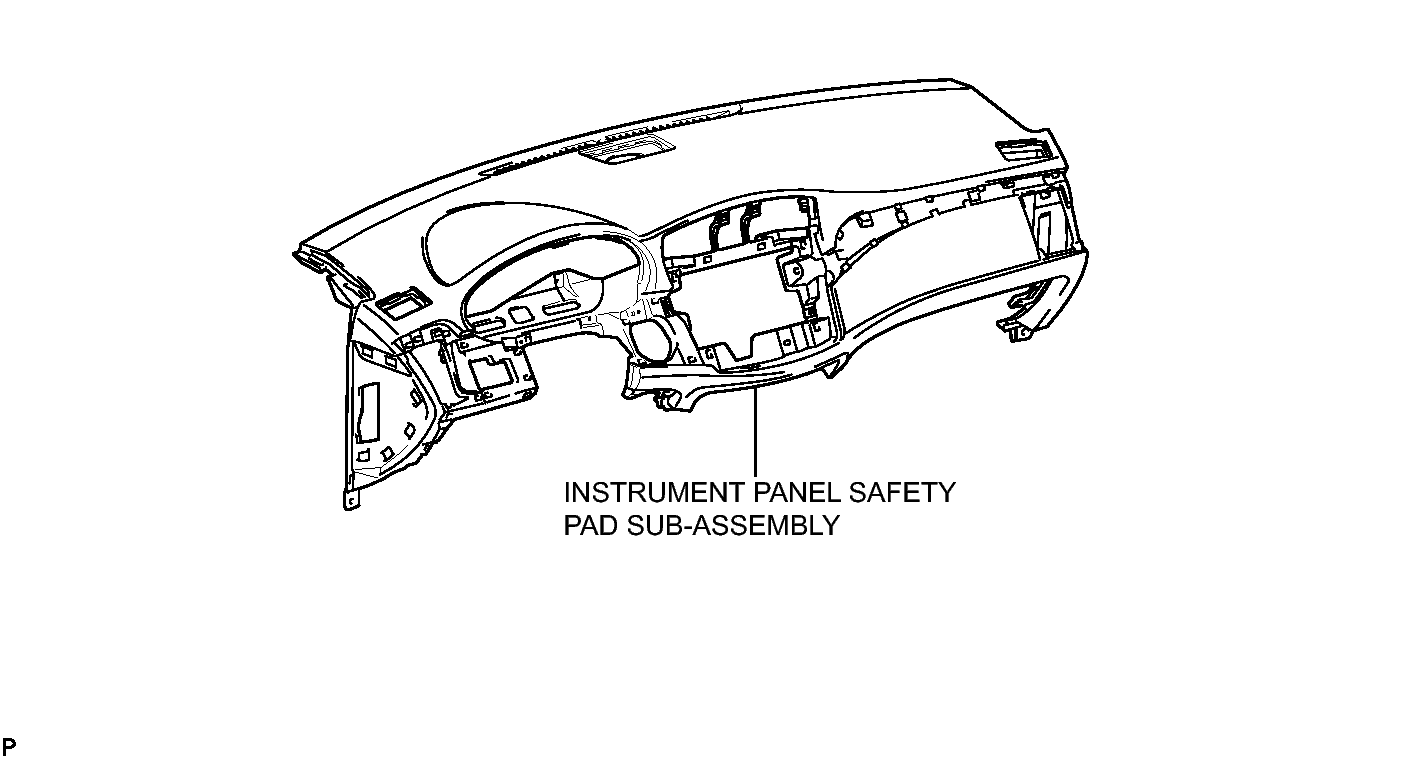

Fig 1: Air Conditioning Unit Replacement Parts With Torque Specifications (1 of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

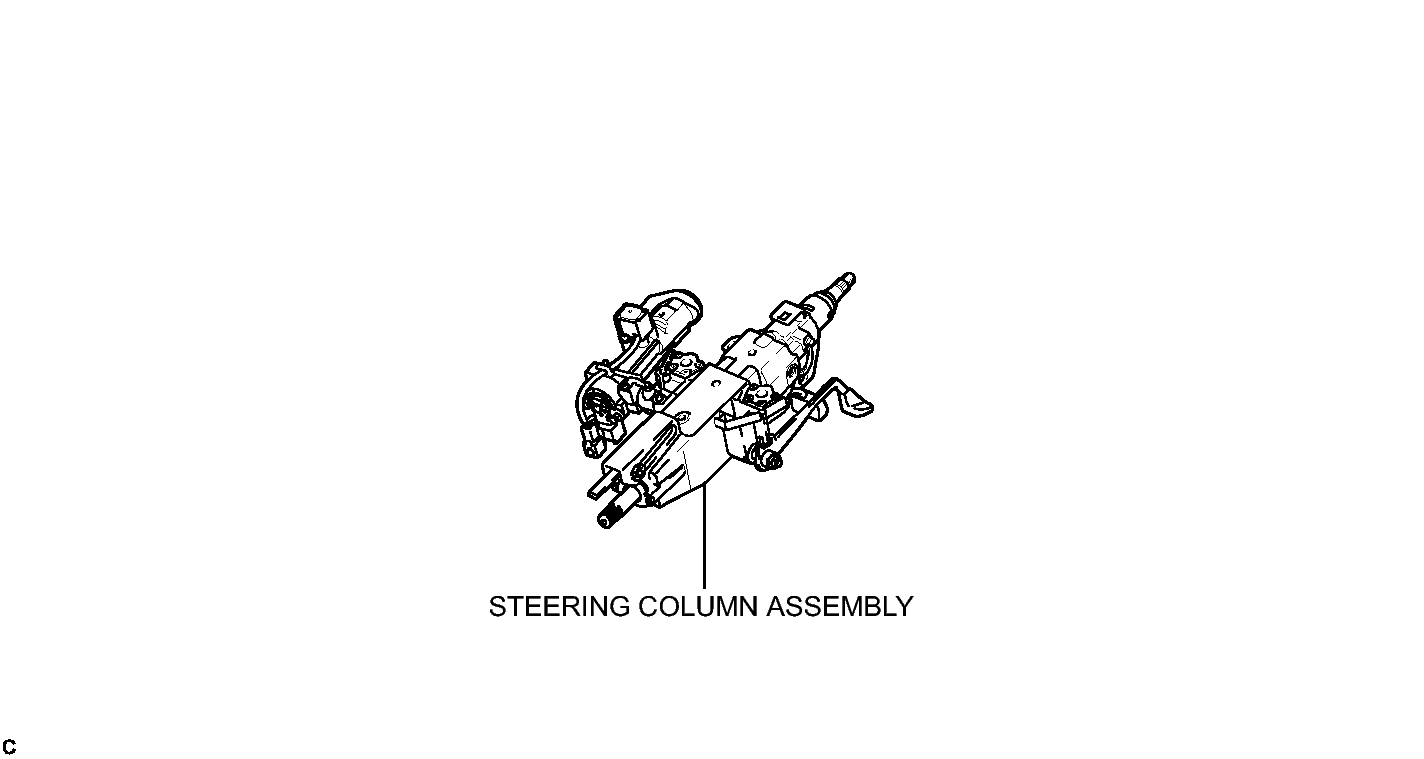

Fig 1: Air Conditioning Unit Replacement Parts With Torque Specifications (2 of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

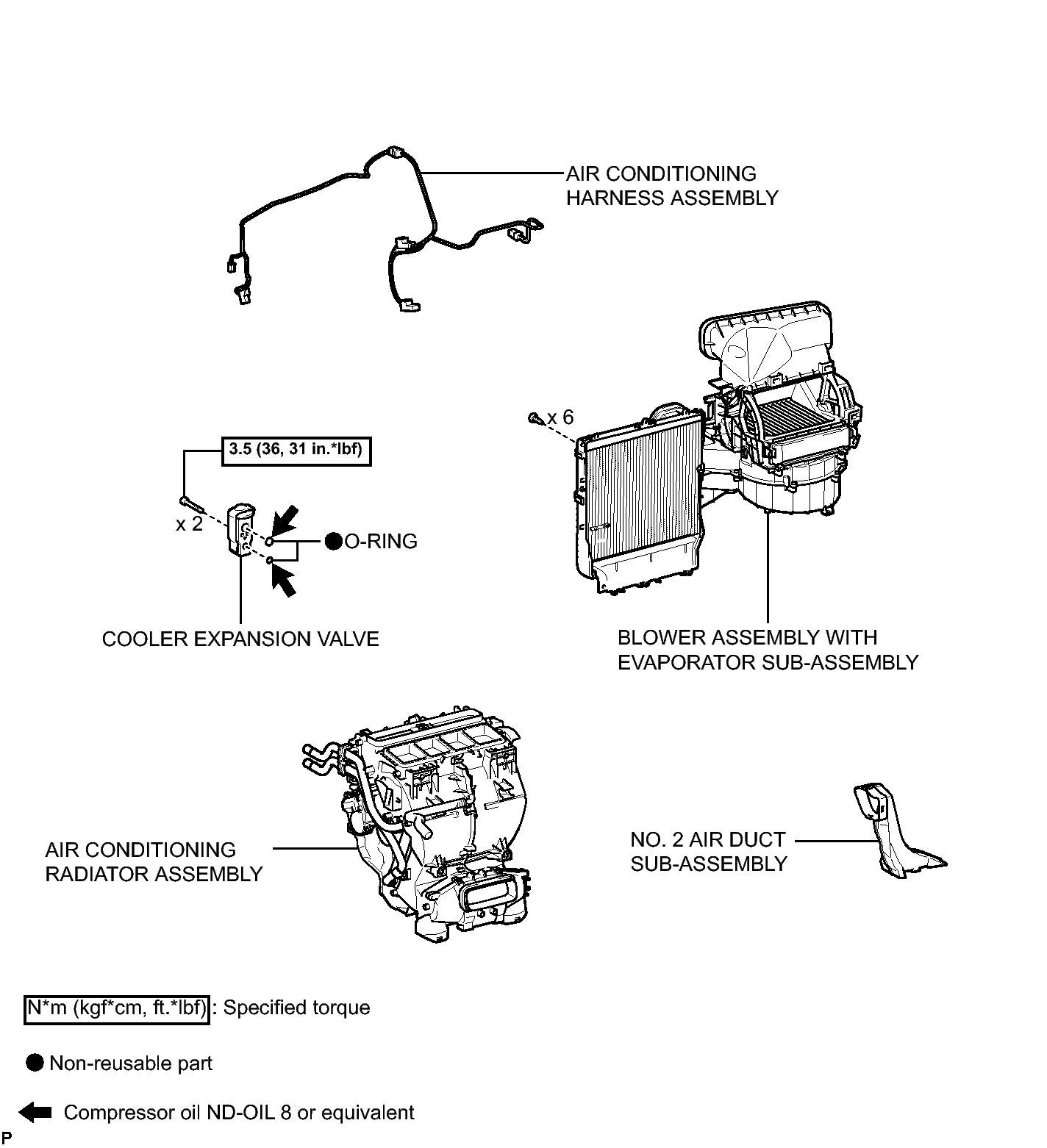

Fig 1: Air Conditioning Unit Replacement Parts With Torque Specifications (3 of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

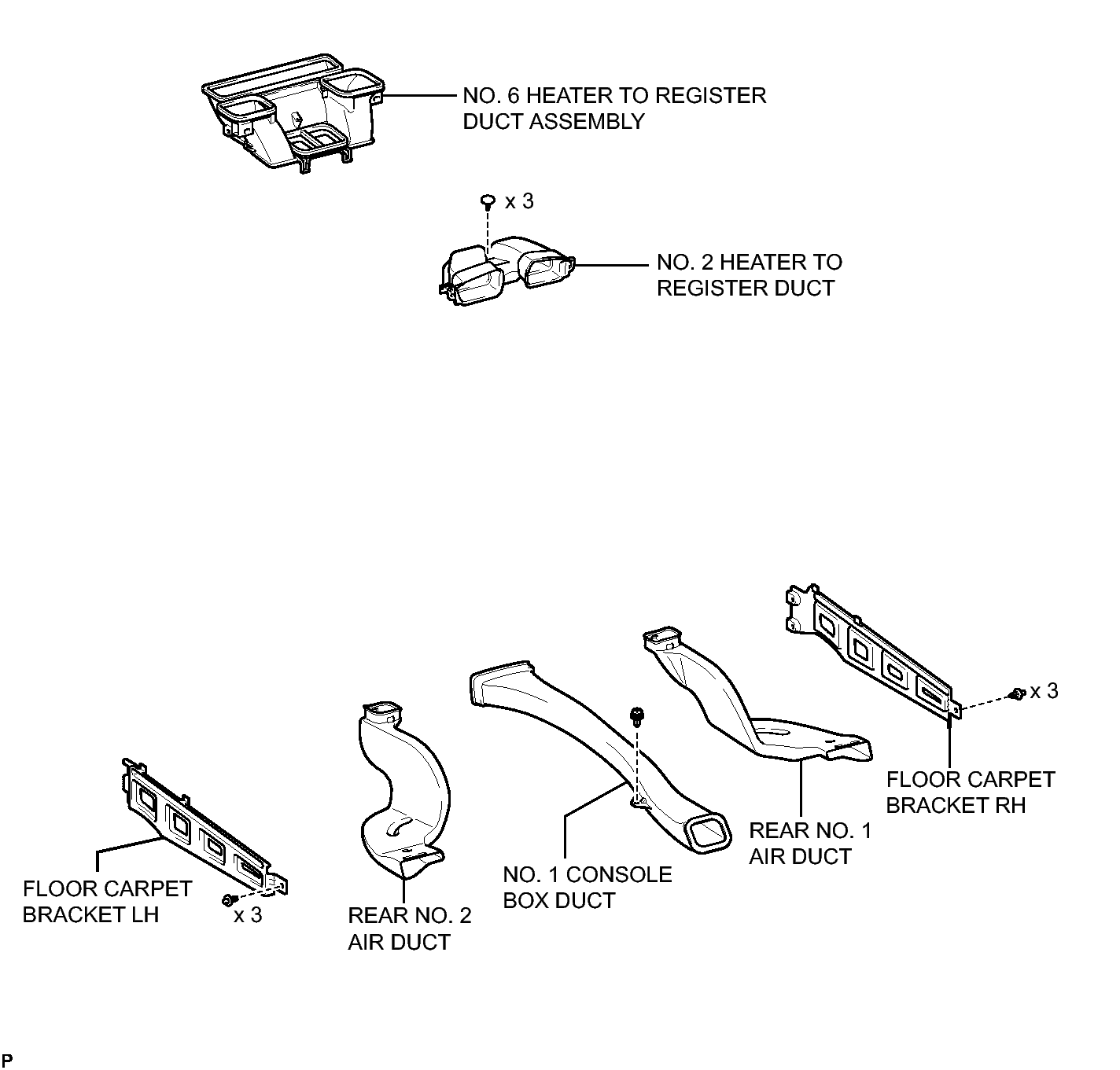

Fig 1: Air Conditioning Unit Replacement Parts With Torque Specifications (4 of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

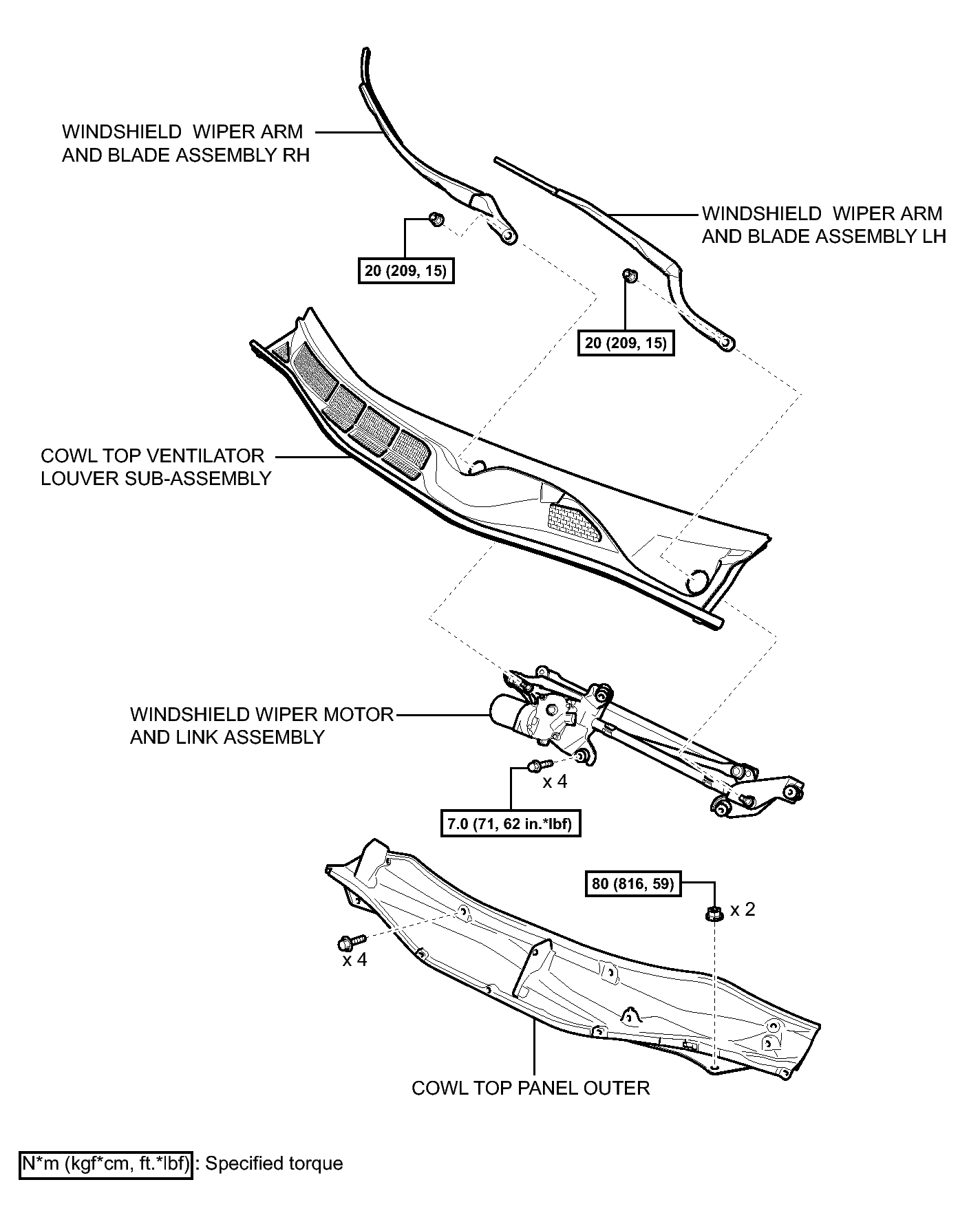

Fig 1: Air Conditioning Unit Replacement Parts With Torque Specifications (5 of 7)

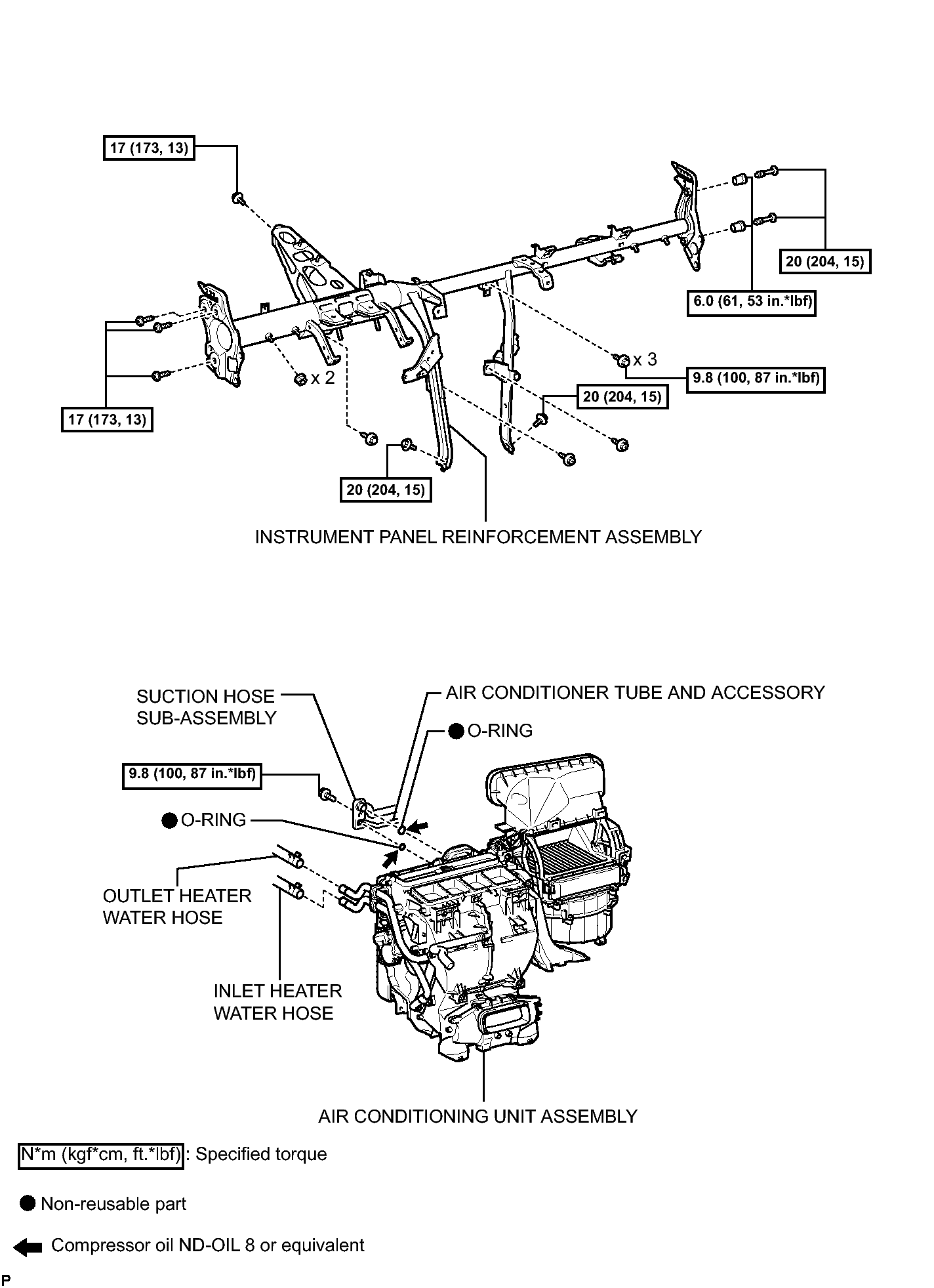

Fig 1: Air Conditioning Unit Replacement Parts With Torque Specifications (6 of 7)

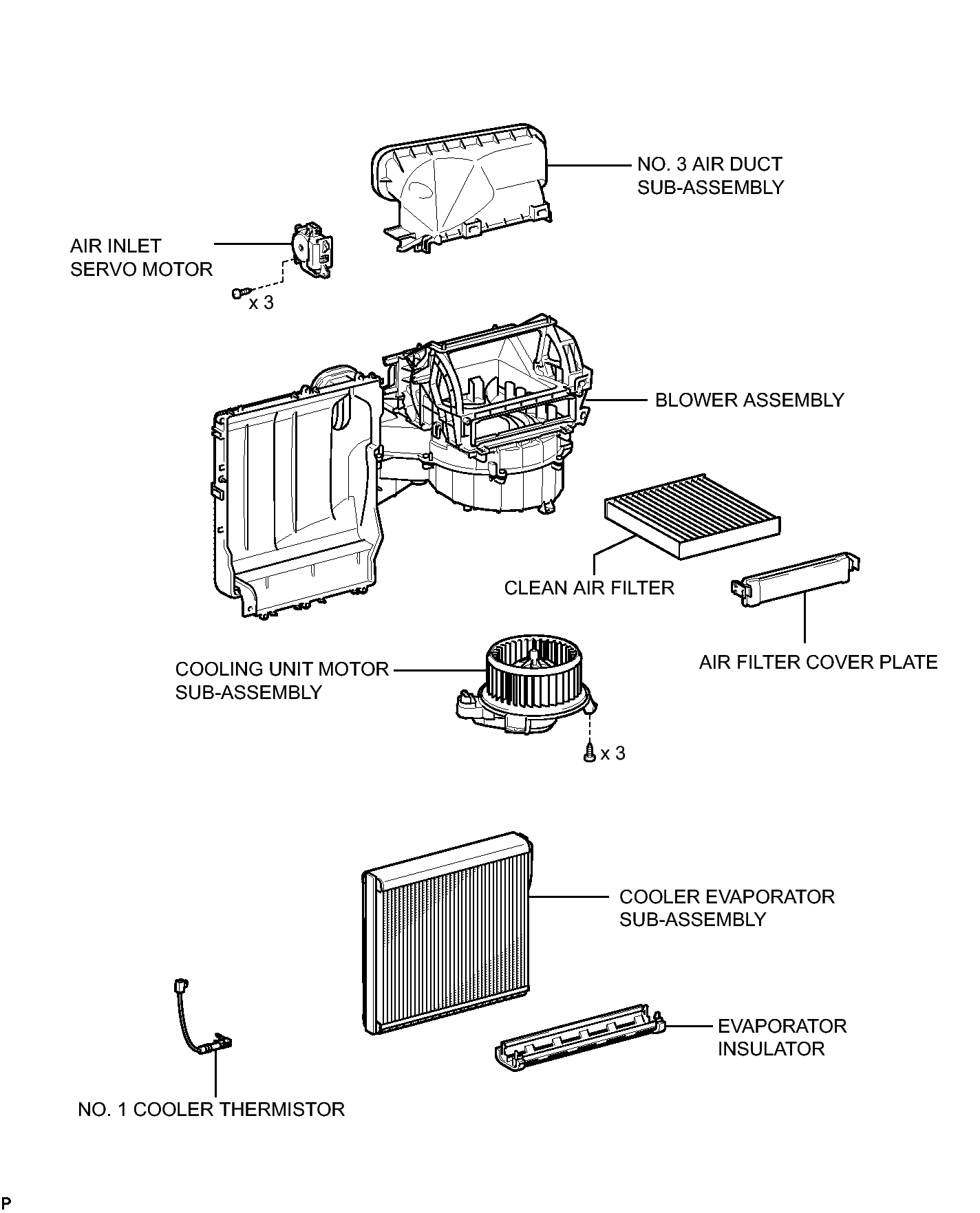

Fig 1: Identifying Blower Unit Replacement Components (7 Of 7)
