Oil Pressure Switch: Components

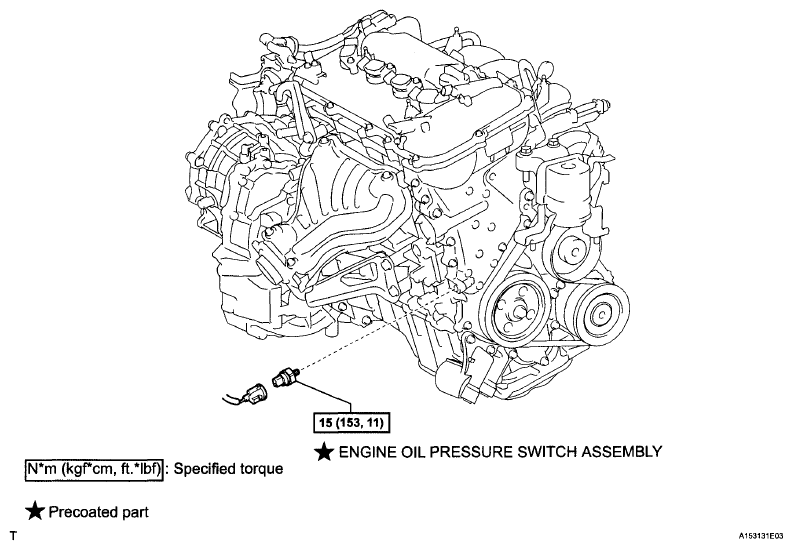

Fig 1: Oil Pressure Switch Assembly With Torque Specifications
G06009470Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
