Engine Cooling System (2ZR-FE): Thermostat: Components

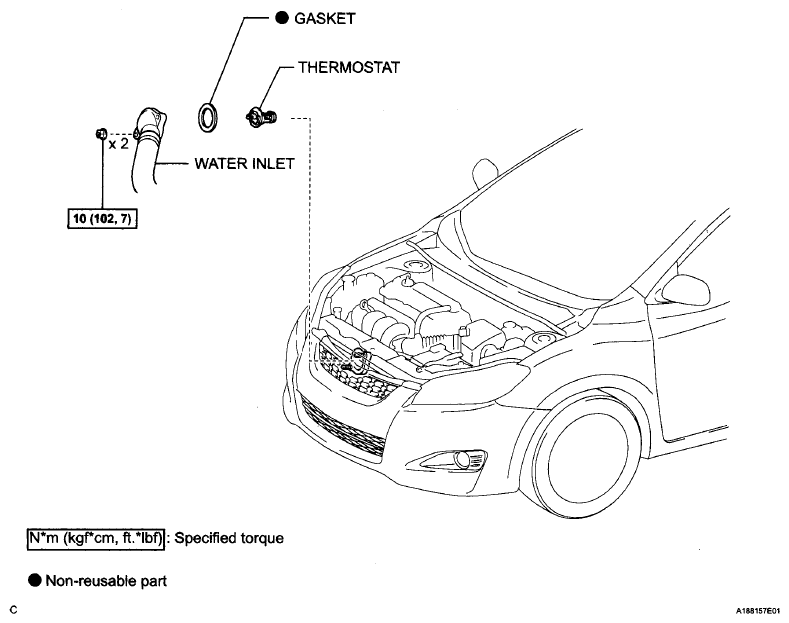

Fig 1: Identifying Thermostat Components

G06042731

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
