Matrix Base, Standard
>>
Repair and Diagnosis
>>
Electrical
>>
Starter
>>
Starting System (2ZR-FE)
>>
Starting System
>>
Parts Location
Parts Location

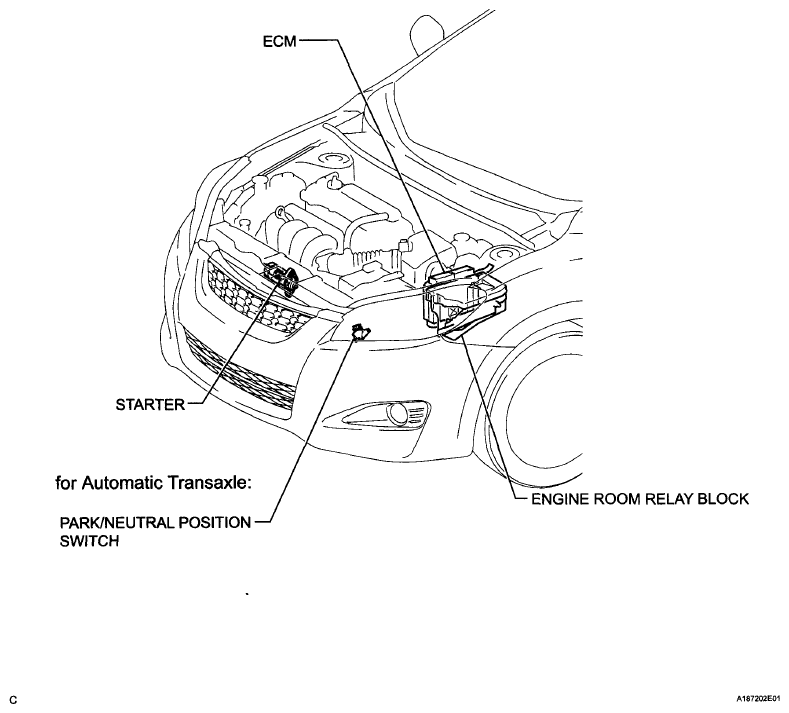

Fig 1: Identifying Starting System Parts Location (Automatic Transaxle)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

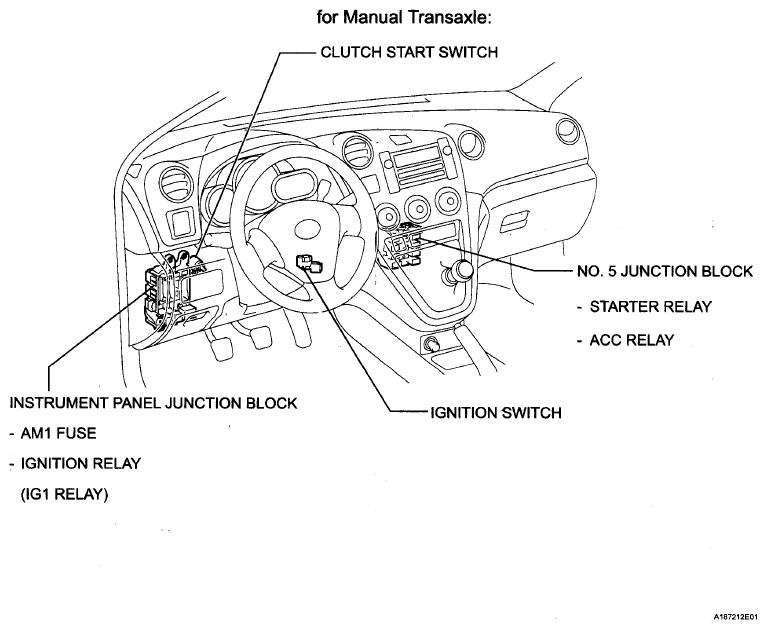

Fig 2: Identifying Starting System Parts Location (Manual Transaxle)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
