Rear Differential Carrier Assembly: Installation

INSTALL REAR DIFFERENTIAL CARRIER ASSEMBLY
1. Install the differential with rear No. 1 differential support to the rear suspension member front side with the 2 bolts and 2 nuts.
  Torque: 118 N*m (1200 kgf*cm, 87 ft.*lbf)

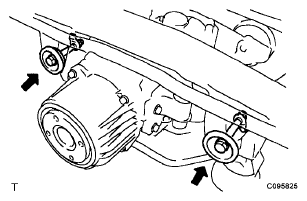

  Fig 1: Locating Differential Support Nut And Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the differential with support bolts to the rear suspension member rear side with the 2 rear mounting bolts.
  Torque: 137 N*m (1400 kgf*cm, 101 ft.*lbf)
INSTALL NO. 6 EXHAUST PIPE SUPPORT BRACKET (See INSTALLATION )
INSTALL REAR SUSPENSION MEMBER

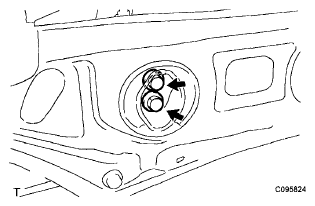

Fig 2: Locating Differential Rear Mounting Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Refer to the procedure up to Install Rear Suspension Member (See INSTALLATION ).
ADD DIFFERENTIAL OIL (See DIFFERENTIAL OIL )
INSPECT AND ADJUST DIFFERENTIAL OIL (See DIFFERENTIAL OIL )
INSPECT FOR EXHAUST GAS LEAK
INSPECT AND ADJUST REAR WHEEL ALIGNMENT
(See REAR WHEEL ALIGNMENT (FOR DOUBLE WISHBONE TYPE SUSPENSION) )
CHECK FOR SPEED SENSOR SIGNAL
w/o VSC (See TEST MODE PROCEDURE )

w/ VSC (See TEST MODE PROCEDURE )
