Rear Differential Carrier Assembly: Disassembly

  1. SECURE REAR DIFFERENTIAL CARRIER ASSEMBLY
    Fig 1: Locating Rear Differential Dynamic Damper Bolt
    G06025553Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE REAR DIFFERENTIAL FILLER PLUG
    1. Using a hexagon wrench (17 mm), remove the rear differential filler plug (inspection plug) and gasket.
      Fig 2: Locating Rear Differential Filler Plug
      G06025554Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE STUD BOLT
    1. Install 2 service nuts to the stud bolt.

      Recommended service nut

      RECOMMENDED SERVICE NUT

      Thread diameter 8 mm (0.3150 in.)
      Thread pitch 1.25 mm (0.0492 in.)
    2. Lock the upper nut using the lower nut.
    3. Turn the lower nut and remove the other 3 stud bolts in the same way.
      Fig 3: Turning Lower Nut
      G06034377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSPECT RUNOUT OF ELECTRO MAGNETIC CONTROL COUPLING SUB-ASSEMBLY
    1. Install a dial indicator perpendicular to the inner side of the electro magnetic control coupling sub-assembly, as shown in the illustration.
    2. Using SST, rotate the electro magnetic control coupling sub-assembly forward and backward and measure the vertical runout.

      SST 09564-32011

      Maximum runout:

      0.04 mm (0.00157 in.)

      If the runout is greater than the maximum value, replace the electro magnetic control coupling sub-assembly.

      Fig 4: Measuring Electro Magnetic Control Coupling Vertical And Lateral Runout
      G06025556Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install a dial indicator perpendicular to the electro magnetic control coupling sub-assembly, as shown in the illustration.
    4. Using SST, rotate the electro magnetic control coupling sub-assembly forward and backward and measure the lateral runout.

      SST 09564-32011

      Maximum runout:

      0.06 mm (0.00236 in.)

      If the runout is greater than the maximum value, replace the electro magnetic control coupling sub-assembly.

  5. REMOVE ELECTRO MAGNETIC CONTROL COUPLING SUB-ASSEMBLY
    1. Remove the 4 bolts. Using a plastic-faced hammer, lightly tap the electro magnetic control coupling sub-assembly to remove it from the rear differential carrier.
      Fig 5: Locating Electro Magnetic Control Coupling Bolts
      G06025557Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE TRANSMISSION COUPLING CONICAL SPRING WASHER
    1. Remove the transmission coupling conical spring washer from the differential carrier.
      Fig 6: Identifying Transmission Coupling Conical Spring Washer
      G06034359Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE TRANSMISSION COUPLING SPACER
    1. Remove the transmission coupling spacer from the differential carrier.
      Fig 7: Identifying Transmission Coupling Spacer
      G06034360Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE REAR DIFFERENTIAL DUST DEFLECTOR
    1. Using a screwdriver, remove the rear differential dust deflector.
      NOTE:
      • Tape the screwdriver tip before use.
      • Pry the circumference of the rear differential dust deflector uniformly to prevent deformation.

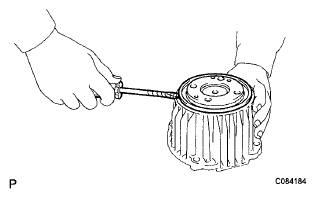

        Fig 8: Removing Rear Differential Dust Deflector
        G06034382Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSPECT DIFFERENTIAL RING GEAR BACKLASH
    1. Insert a dial indicator through the rear differential carrier cover plug hole, and set it perpendicular to a ring gear tooth tip.
    2. Using SST, hold the drive pinion in place.

      SST 09556-16011

    3. Using SST, rotate the rear differential case forward and backward, and measure the backlash.

      SST 09564-32011

      Backlash:

      0.10 to 0.15 mm (0.00394 to 0.00591 in.)

      NOTE: Measure at 3 or more areas on the circumference of the ring gear.

      If the backlash is not within the specification, adjust the side bearing preload or repair as necessary.

      Fig 9: Measuring Differential Ring Gear Backlash
      G06034383Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSPECT DIFFERENTIAL DRIVE PINION PRELOAD
    1. Using SST and a torque wrench, inspect the preload (starting torque) of the backlash between the differential drive pinion and differential ring gear.

      SST 09556-16011

      Standard drive pinion preload:

      0.4 to 0.7 N*m (4 to 7 kgf*cm, 3.0 to 6.0 in.*lbf)

      NOTE: For a more accurate measurement, rotate the case bearing forward and backward before measuring.
      Fig 10: Measuring Differential Drive Pinion Preload
      G06025563Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      If the preload is not within the specified range, adjust the total preload or repair as necessary.

  11. INSPECT TOTAL PRELOAD
    1. Using SST and a torque wrench, inspect the preload (starting torque) with the teeth of the differential drive pinion and differential ring gear in contact.

      SST 09556-16011

      Standard total preload:

      Standard drive pinion preload plus 0.29 to 0.49 N*m (3 to 5 kgf*cm, 2.6 to 4.3 in.*lbf)

      Fig 11: Measuring Differential Drive Pinion Preload
      G06025563Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: For a more accurate measurement, rotate the case bearing forward and backward before measuring.

      If the preload is not within the specified range, adjust the total preload or repair as necessary.

  12. REMOVE REAR DIFFERENTIAL SIDE GEAR SHAFT OIL SEAL
    1. Using SST, tap out the 2 rear differential side gear shaft oil seals from the rear differential carrier.

      SST 09308-00010

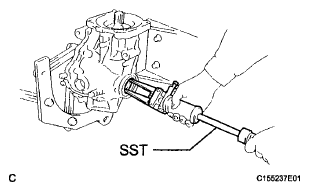

      Fig 12: Removing Rear Differential Side Gear Shaft Oil Seals
      G06025565Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE REAR DRIVE PINION NUT
    1. Using SST and a hammer, unstake the rear drive pinion nut.

      SST 09930-00010

      NOTE:
      • Use SST with the tapered part facing against the shaft.
      • Do not modify the SST tip with a grinder or equivalent.
      • Fully unstake the rear drive pinion nut.

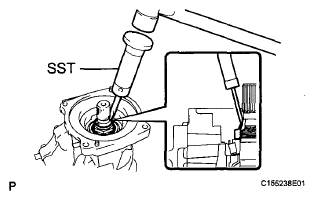

        Fig 13: Unstaking Rear Drive Pinion Nut
        G06034387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

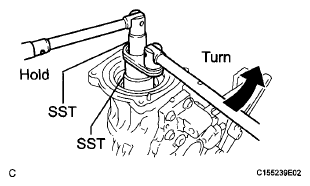

    2. Using SST, hold the differential drive pinion in place and remove the rear drive pinion nut from the differential drive pinion.

      SST 09556-16011, 09564-16020

      Fig 14: Removing Rear Drive Pinion Nut From Differential Drive Pinion
      G06034388Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE OIL DIAPHRAGM SEAL
    1. Using SST, remove the oil diaphragm seal from the rear differential carrier.

      SST 09308-10010

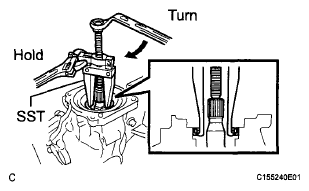

      Fig 15: Removing Oil Diaphragm Seal
      G06034389Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE REAR DRIVE PINION FRONT TAPERED ROLLER BEARING
    1. Using SST, remove the rear drive pinion front tapered roller bearing (inner race) from the drive pinion.

      SST 09556-30010

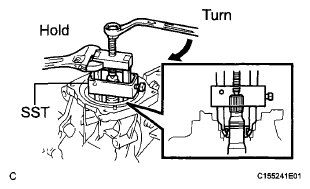

      Fig 16: Removing Rear Drive Pinion Front Tapered Roller Bearing
      G06034390Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

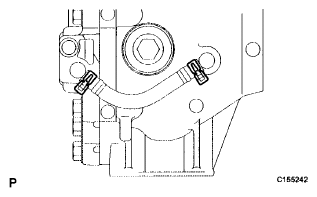

  16. REMOVE REAR DIFFERENTIAL PRESSURE CONTROL HOSE
    1. Remove the 2 differential pressure control hose clips and rear differential pressure control hose.
      Fig 17: Identifying Differential Pressure Control Hose Clips And Rear Differential Pressure Control Hose
      G06025570Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE DIFFERENTIAL PRESSURE CONTROL HOSE ELBOW
    1. Put matchmarks on the differential pressure control hose elbows and rear differential carrier.
    2. Using a screwdriver, remove the 2 differential pressure control hose elbows.

      HINT:

      Tape the screwdriver tip before use.

      Fig 18: Identifying Matchmarks On Differential Pressure Control Hose Elbows And Rear Differential Carrier
      G06034392Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE DIFFERENTIAL SIDE BEARING RETAINER
    1. Remove the 10 bolts from the differential carrier.
      Fig 19: Locating Rear Differential Carrier Assembly Bolts
      G06025572Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

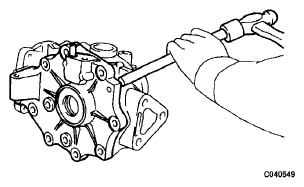

    2. Using a brass bar and a hammer, lightly tap out the differential side bearing retainer from the differential carrier.
      NOTE: Set the brass bar on the ribbed part of the differential side bearing retainer.
      Fig 20: Removing Side Bearing Retainer From Differential Carrier
      G06025573Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE REAR DIFFERENTIAL CARRIER COVER BREATHER PLUG
    1. Using a screwdriver, remove the rear differential carrier cover breather plug from the side bearing retainer.

      HINT:

      Tape the screwdriver tip before use.

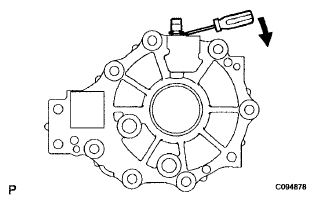

      Fig 21: Removing Rear Differential Carrier Cover Breather Plug
      G06025574Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

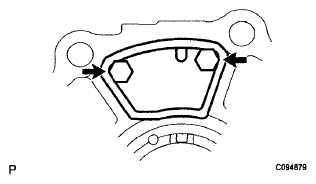

  20. REMOVE REAR DIFFERENTIAL BREATHER PLUG OIL DEFLECTOR
    1. Remove the 2 bolts and rear differential breather plug oil deflector.
      Fig 22: Locating Rear Differential Breather Plug Oil Deflector And Bolts
      G06025575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE REAR DIFFERENTIAL CASE SUB-ASSEMBLY
    1. Remove the rear differential case from the rear differential carrier.
      Fig 23: Removing/Installing Rear Differential Case Sub-Assembly
      G06025576Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE DIFFERENTIAL DRIVE PINION
    1. Remove the differential drive pinion from the rear differential carrier.
      Fig 24: Removing/Installing Differential Drive Pinion
      G06025577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. REMOVE REAR DIFFERENTIAL DRIVE PINION OIL SLINGER
    1. Remove the rear differential drive pinion oil slinger from the differential drive pinion.
      Fig 25: Removing/Installing Rear Differential Drive Pinion Oil Slinger
      G06025578Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. REMOVE REAR DIFFERENTIAL DRIVE PINION BEARING SPACER
    1. Remove the rear differential drive pinion bearing spacer from the differential drive pinion.
      Fig 26: Removing/Installing Rear Differential Drive Pinion Bearing Spacer
      G06025579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

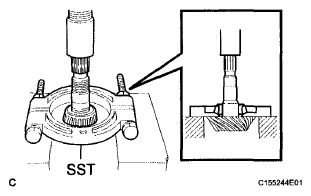

  25. REMOVE REAR DRIVE PINION REAR TAPERED ROLLER BEARING
    1. Using SST and a press, press out the rear drive pinion rear tapered roller bearing (inner race) from the differential drive pinion.

      SST 09950-00020

      NOTE: If the rear differential drive pinion or differential ring gear is damaged, replace them both.
    2. Remove the rear differential drive pinion plate washer.
      Fig 27: Pressing Out Rear Drive Pinion Rear Tapered Roller Bearing (Inner Race)
      G06025580Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

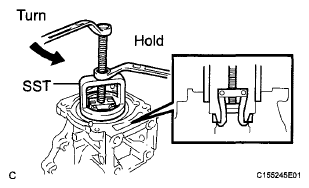

  26. REMOVE REAR DRIVE PINION FRONT TAPERED ROLLER BEARING
    1. Using SST, remove the rear drive pinion front tapered roller bearing (outer race) from the rear differential carrier.

      SST 09612-65014 (09612-01020, 09612-01050)

      Fig 28: Removing Rear Drive Pinion Front Tapered Roller Bearing (Outer Race) From Rear Differential Carrier
      G06034402Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. REMOVE REAR DRIVE PINION REAR TAPERED ROLLER BEARING
    1. Using a brass bar and a hammer, lightly and uniformly tap out the rear drive pinion rear tapered roller bearing (outer race) from the differential carrier.
      NOTE: Set the brass bar on the notch.

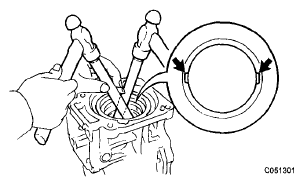

      Fig 29: Removing Rear Drive Pinion Rear Tapered Roller Bearing (Outer Race)
      G06034403Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. REMOVE REAR DIFFERENTIAL CASE BEARING
    1. Using SST and a press, press out the rear differential case bearing RH (outer race) and rear differential side gear shaft plate washer from the rear differential carrier.

      SST 09950-60010 (09951-00580), 09950-70010 (09951-07100)

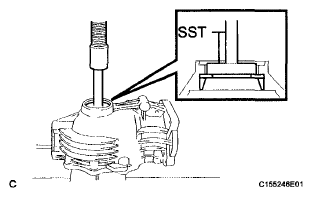

      Fig 30: Removing Rear Differential Case Bearing (RH Side Outer Race)
      G06025583Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. REMOVE REAR DIFFERENTIAL CASE BEARING
    1. Using SST and a press, press out the rear differential case bearing LH (outer race) and rear differential side gear shaft plate washer from the differential side bearing retainer.

      SST 09950-60010 (09951-00580), 09950-70010 (09951-07100), 09223-15020

  30. REMOVE STRAIGHT PIN
    1. Remove the 4 straight pins from the differential carrier.

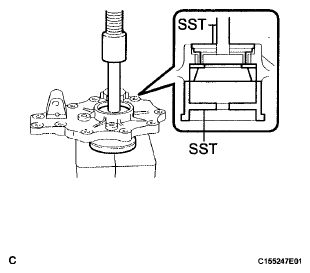

      Fig 31: Removing Rear Differential Case Bearing (LH Side Outer Race)
      G06025584Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

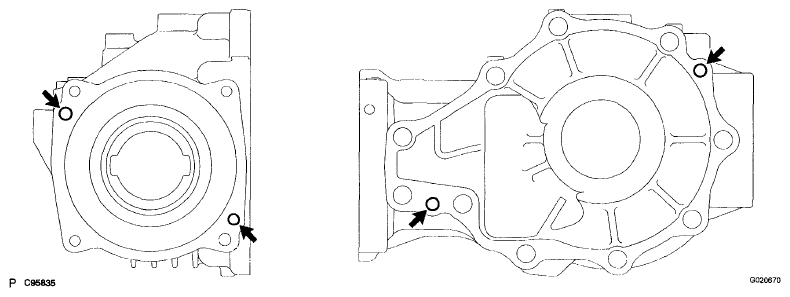

      Fig 32: Locating Differential Carrier Straight Pin
      G06034406Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. REMOVE REAR DIFFERENTIAL CASE BEARING
    1. Using SST, remove the rear differential case bearing RH (inner race) from the rear differential case.

      SST 09950-40011 (09951-04020,09952-04010, 09953-04020, 09954-04010, 09955-04011, 09957-04010, 09958-04011), 09950-60010 (09951-00370)

      NOTE: Before using the SST center bolt (09953-04020), apply hypoid gear oil to its threads and tip.

      HINT:

      If the race remains on the rear differential case, repeat the step above to remove the race.

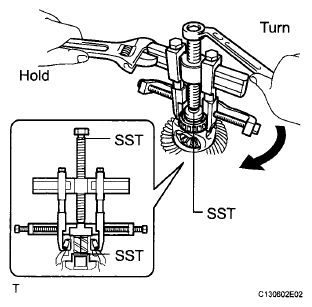

      Fig 33: Removing Rear Differential Case Bearing RH (Inner Race)
      G06034407Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. REMOVE REAR DIFFERENTIAL CASE BEARING
    1. Using SST, remove the rear differential case bearing LH (inner race) from the rear differential case.

      SST 09950-40011 (09951-04020,09952-04010, 09953-04020, 09954-04010, 09955-04061, 09957-04010, 09958-04011), 09950-60010 (09951-00370)

      NOTE: Before using the SST center bolt (09953-04020), apply hypoid gear oil to its threads and tip.

      HINT:

      If the race remains on the rear differential case, repeat the step above to remove the race.

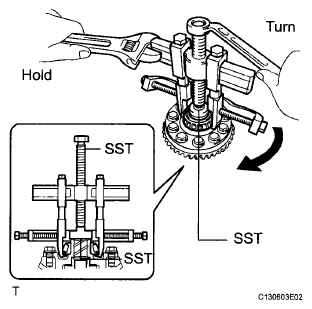

      Fig 34: Removing Rear Differential Case Bearing LH (Inner Race)
      G06034408Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

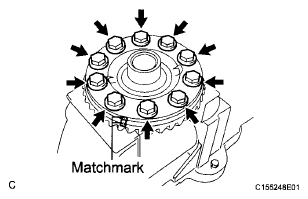

  33. REMOVE DIFFERENTIAL RING GEAR
    1. Place matchmarks on the rear differential case and differential ring gear.
    2. Remove the 10 ring gear set bolts.
    3. Using a plastic-faced hammer, lightly tap the outer circumference of the differential ring gear to remove it from the rear differential case.
      Fig 35: Locating Ring Gear Set Bolts And Matchmark
      G06034409Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. REMOVE REAR DIFFERENTIAL CASE SUB-ASSEMBLY

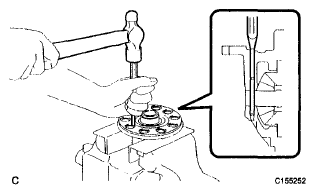

    1. Using a pin punch and a hammer, remove the rear differential pinion shaft pin.
      Fig 36: Removing Rear Differential Pinion Shaft Pin
      G06025589Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. REMOVE DIFFERENTIAL PINION AND SIDE GEAR
    1. Remove the following components from the rear differential case:
      1. Differential pinion gear (A)
      2. Rear differential pinion thrust washer (B)
      3. Rear differential pinion shaft (C)
      4. Differential side gear (D)
      5. Rear No. 1 differential side gear thrust washer (E)

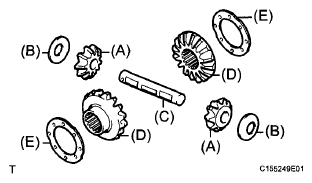

        Fig 37: Identifying Rear Differential Case Components
        G06034411Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  36. INSPECT DIFFERENTIAL PINION AND SIDE GEAR
    1. Check the differential pinion gears and differential side gears for wear.
  37. INSPECT REAR DIFFERENTIAL CASE SUB-ASSEMBLY
    1. Check the differential case for cracks or damage.
