Rear Axle Carrier: Components

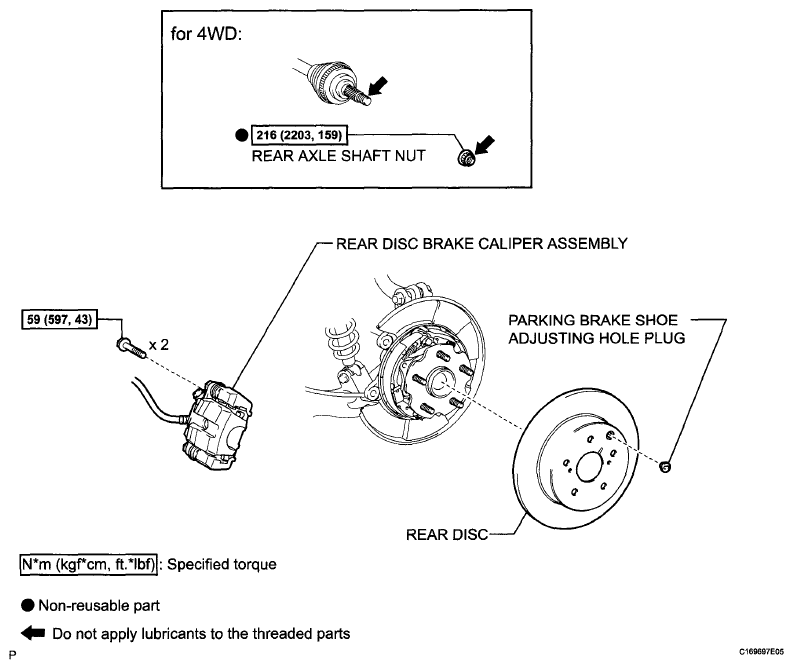

Fig 1: Rear Disc Brake And Related Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

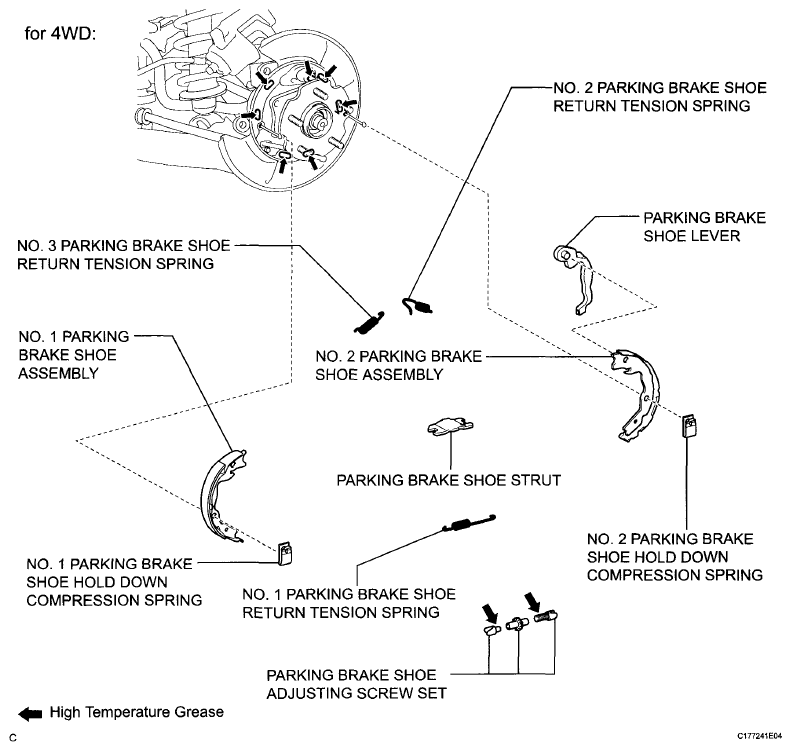

Fig 2: Identifying Parking Brake Assembly Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

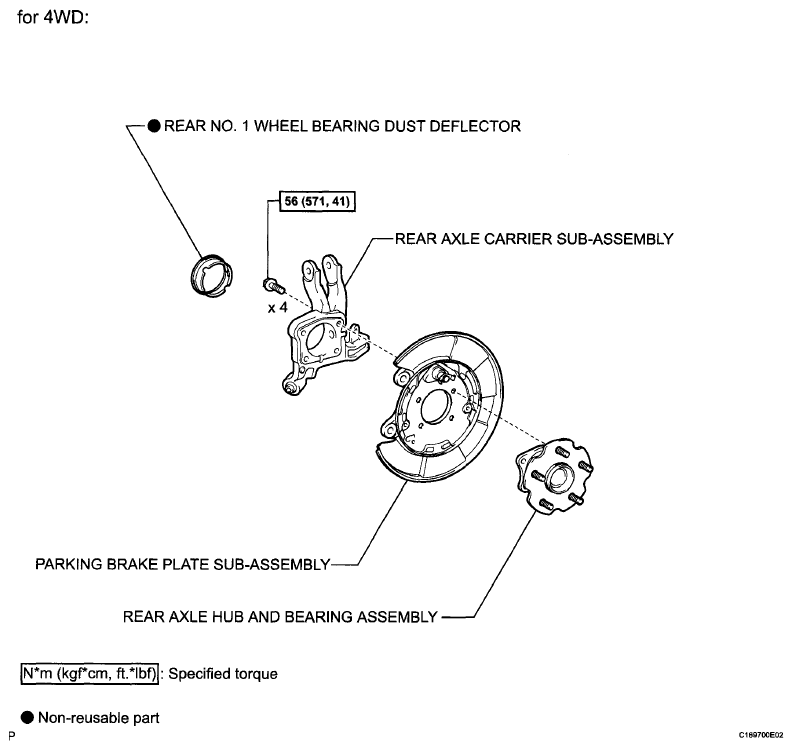

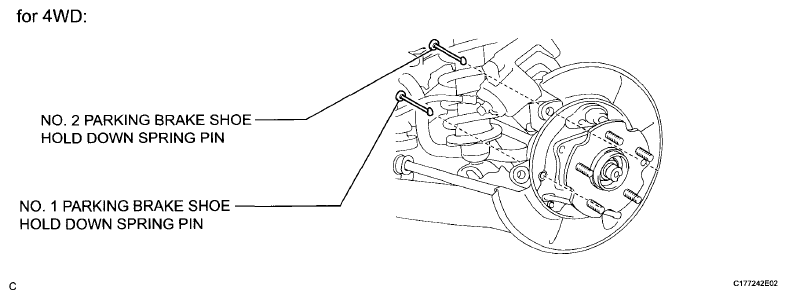

Fig 3: Identifying Parking Brake Shoe And Hold Down Spring Pin

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Parking Brake And Suspension Replacement Components With Torque Specifications

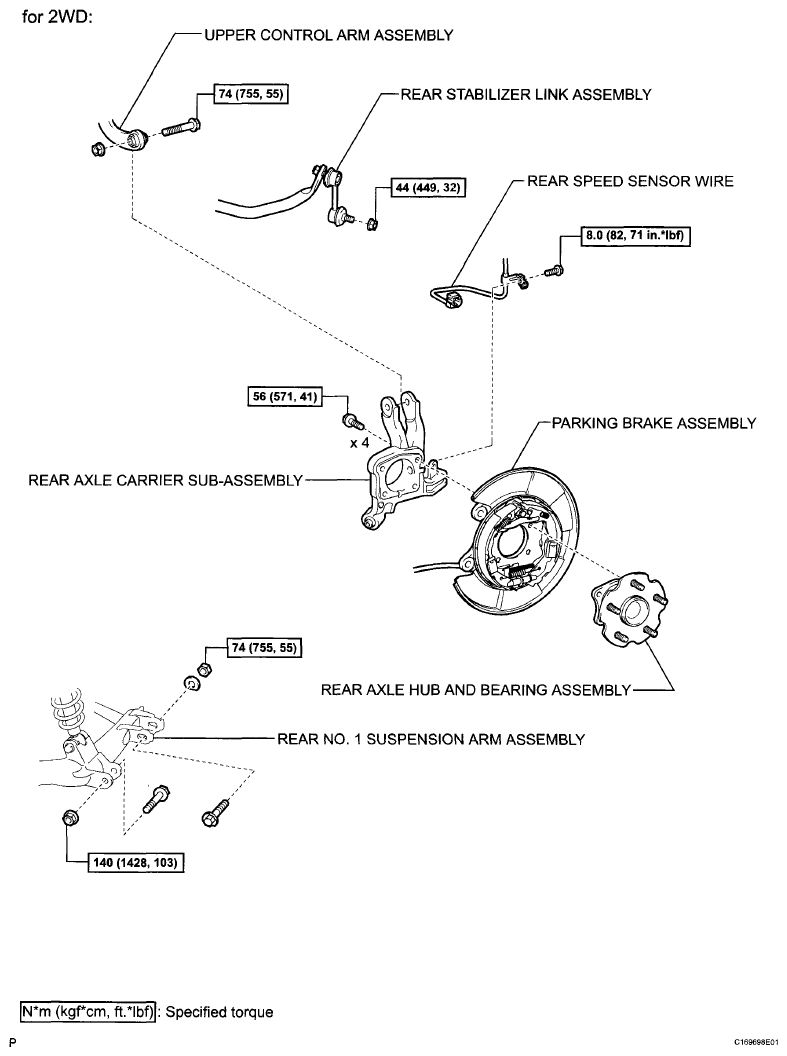

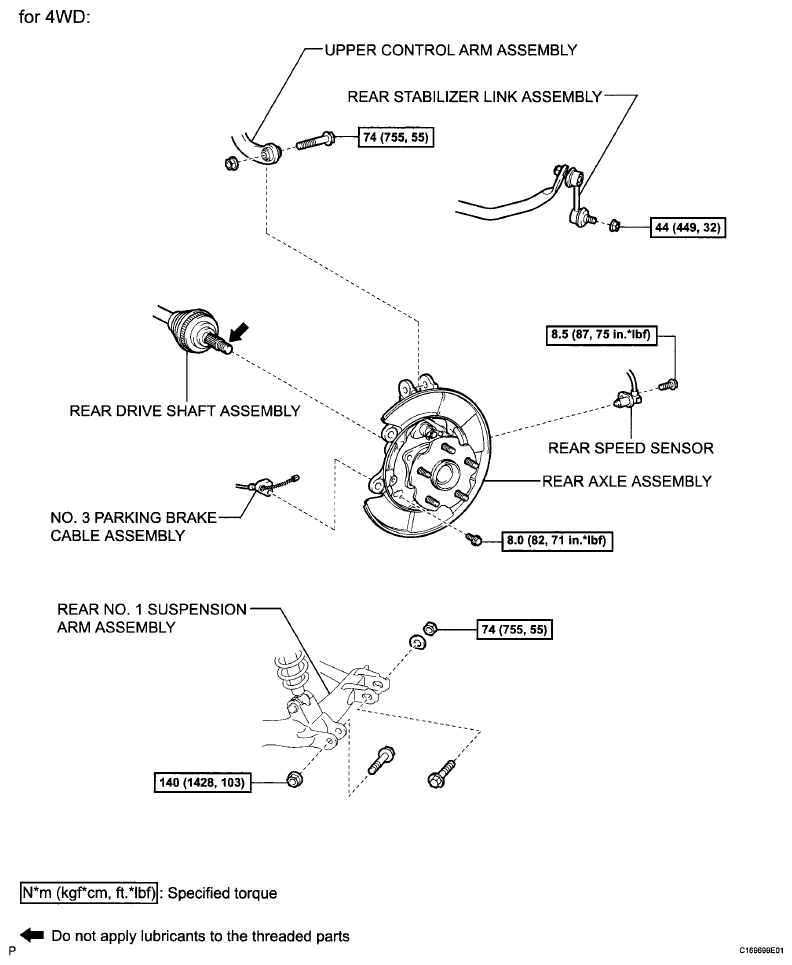

Fig 5: Rear Axle And Suspension Assembly Replacement Components With Torque Specifications

Fig 6: Rear Axle Hub And Bearing Assembly And Related Replacement Components With Torque Specifications
