Differential Mount Cushion: Components

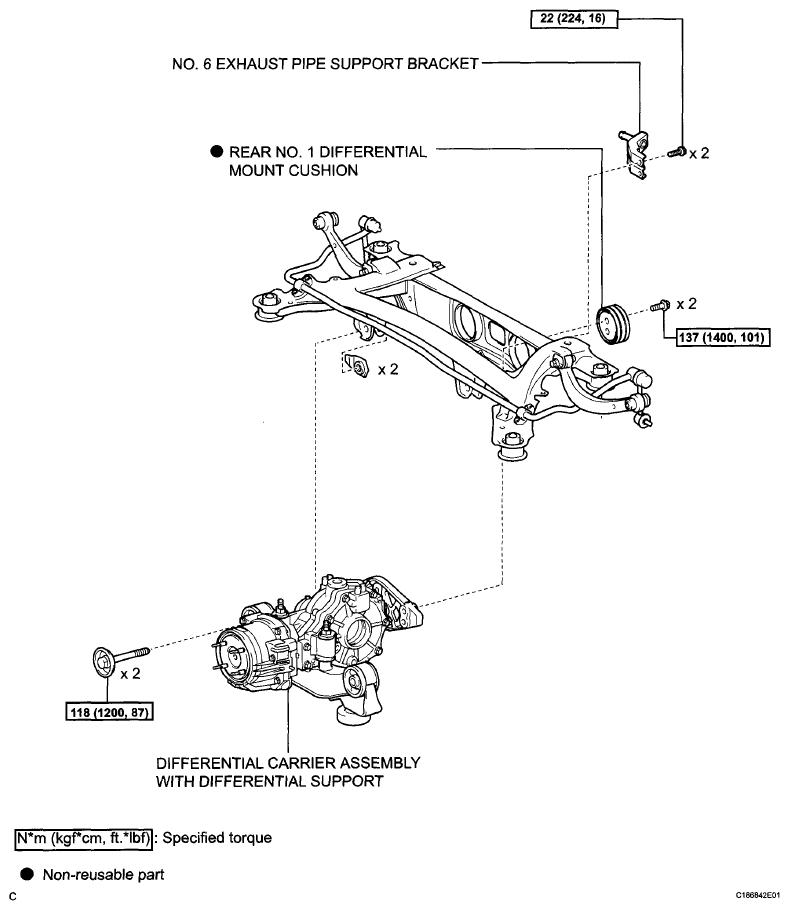

Fig 1: Differential Mount Cushion And Related Replacement Components With Torque Specifications

G06034466

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
