Parking Brake Switch: Installation

INSTALL PARKING BRAKE SWITCH ASSEMBLY
1. Connect the connector to the parking brake switch assembly.

  Fig 1: Locating Parking Brake Switch Assembly And Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the parking brake switch assembly to the parking brake lever assembly with the screw.
  Torque: 0.9 N*m (9 kgf*cm, 8 in.*lbf)
INSPECT BRAKE WARNING LIGHT (See ADJUSTMENT )
INSTALL FRONT UPPER CONSOLE BOX (See INSTALLATION )

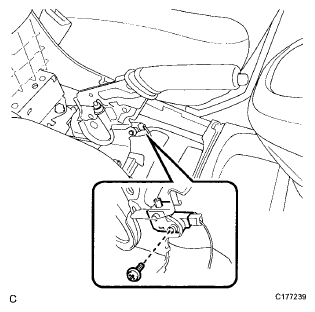

Fig 2: Identifying Parking Brake Switch Assembly And Screw
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
