Parts Location

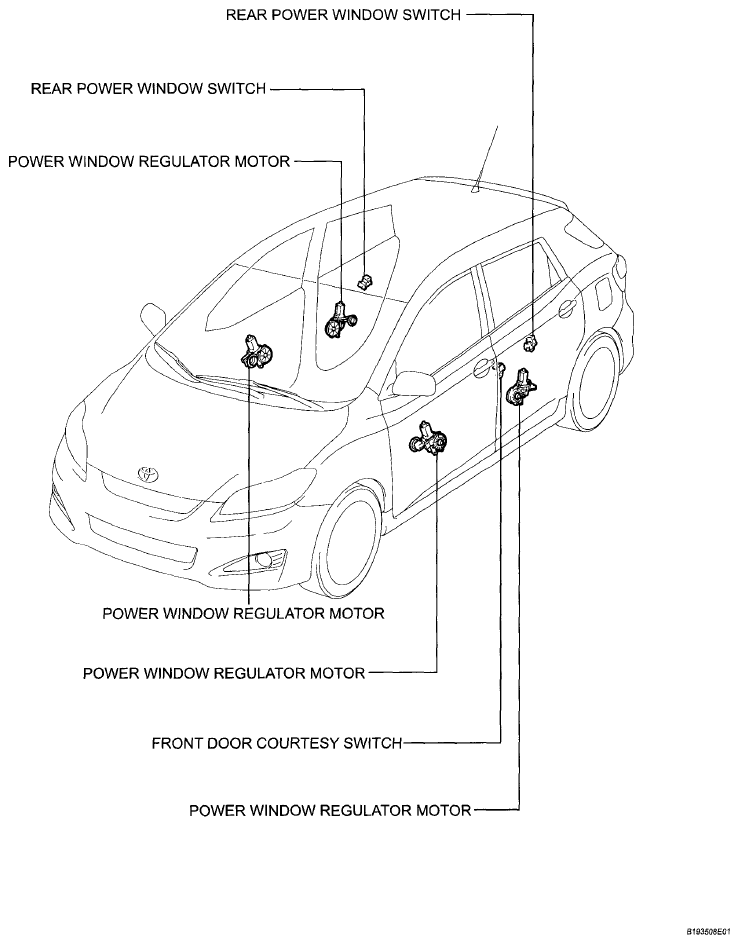

Fig 1: Identifying Power Window Control System Parts Location (1 Of 2)
G06038059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

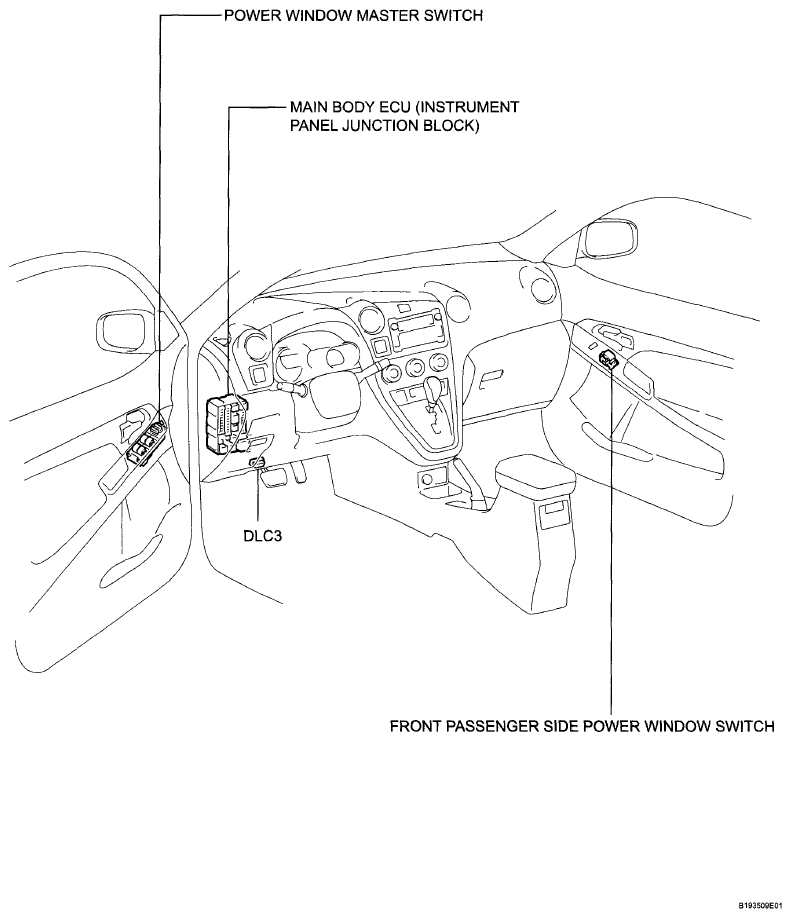

Fig 2: Identifying Power Window Control System Parts Location (2 Of 2)
G06038060Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
