Upper Instrument Panel: Components

Fig 1: Upper Instrument Panel Replacement Components With Torque Specifications (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

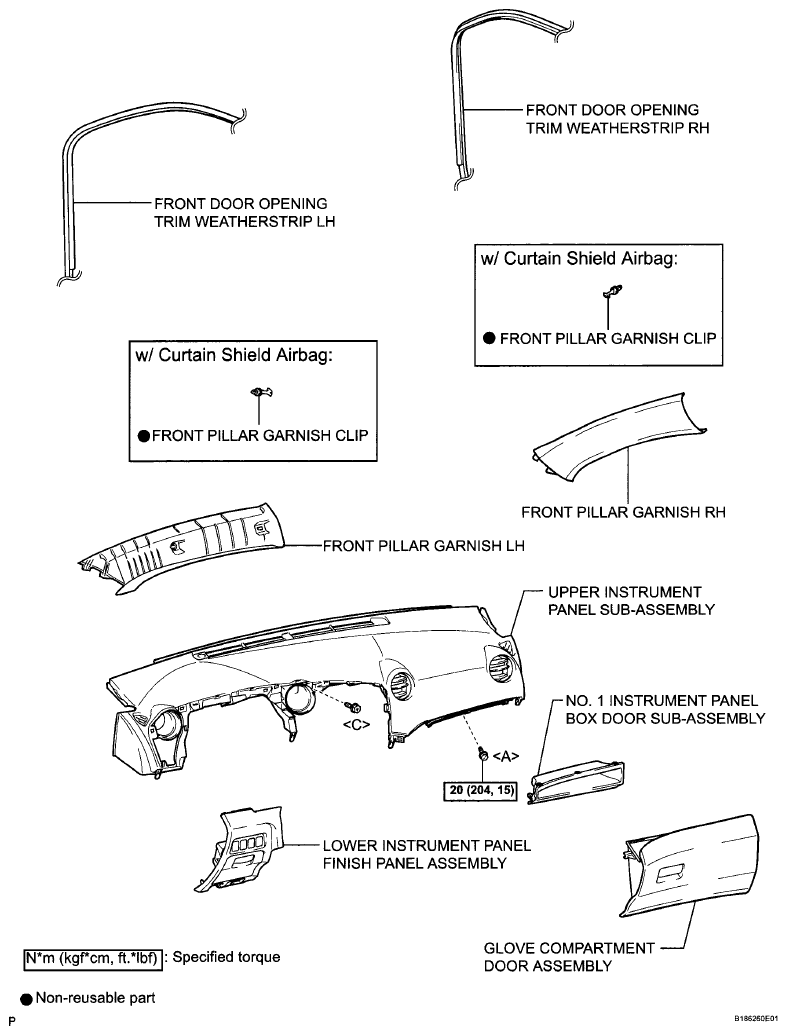

Fig 2: Identifying Upper Instrument Panel Components (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

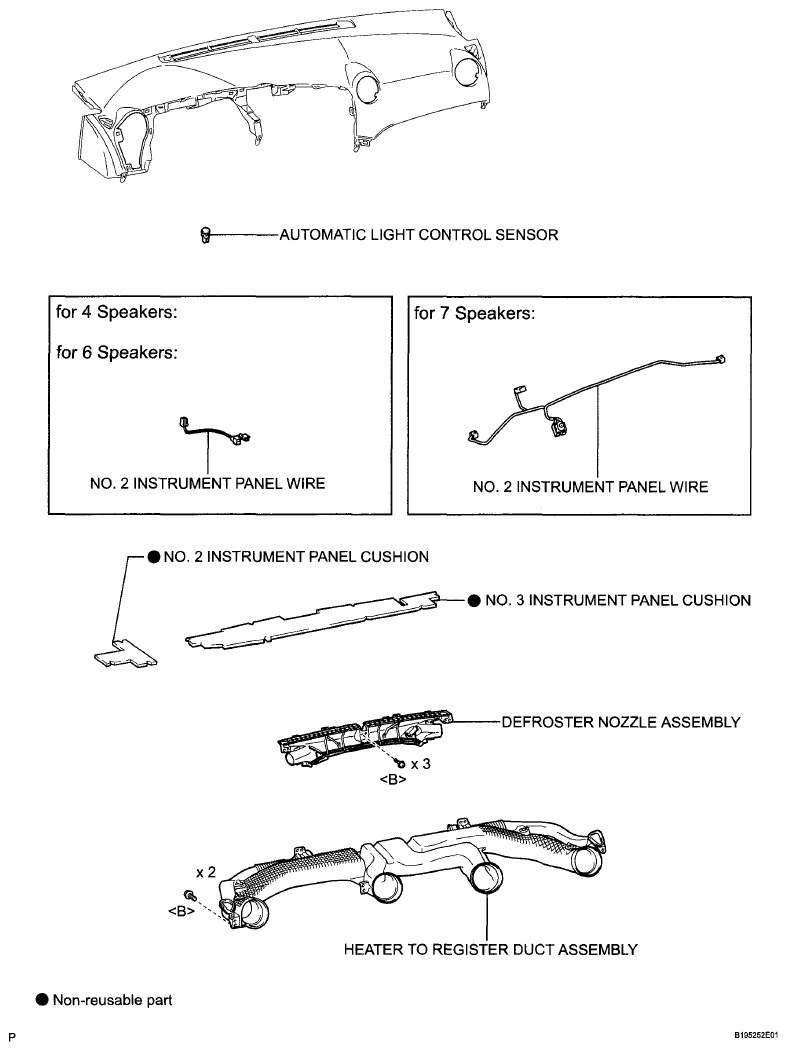

Fig 3: Identifying Upper Instrument Panel Components (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

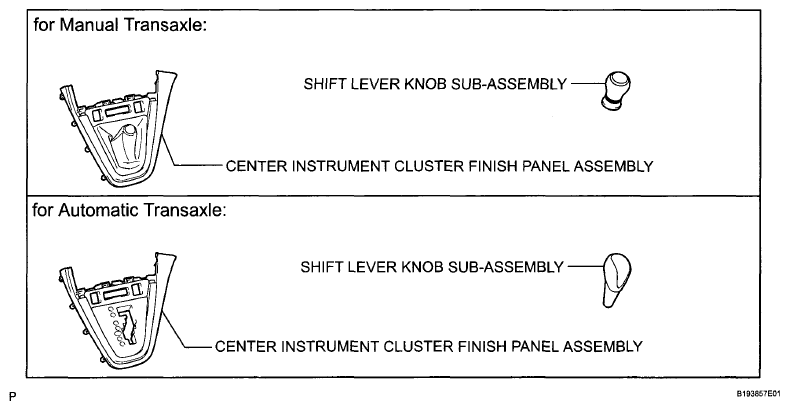

Fig 4: Upper Instrument Panel Replacement Components With Torque Specifications (4 Of 6)

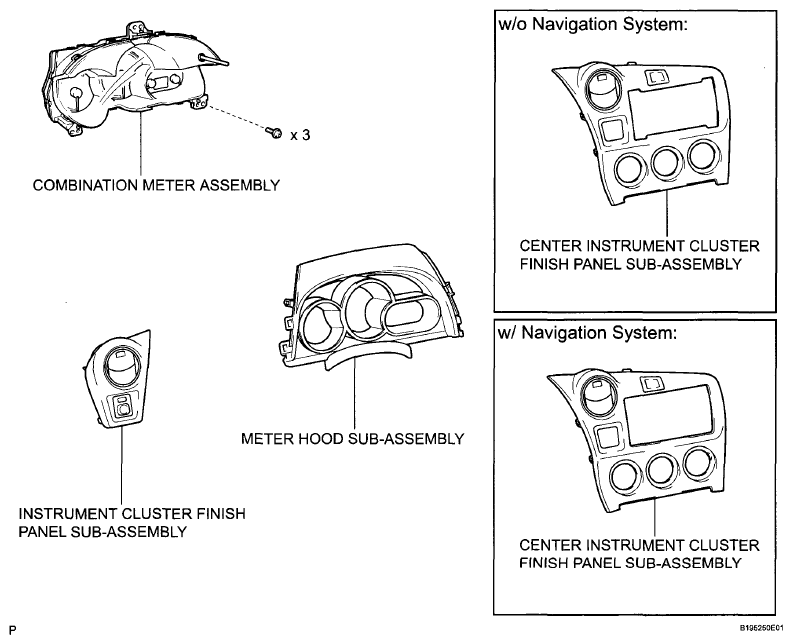

Fig 5: Identifying Upper Instrument Panel Components (5 Of 6)

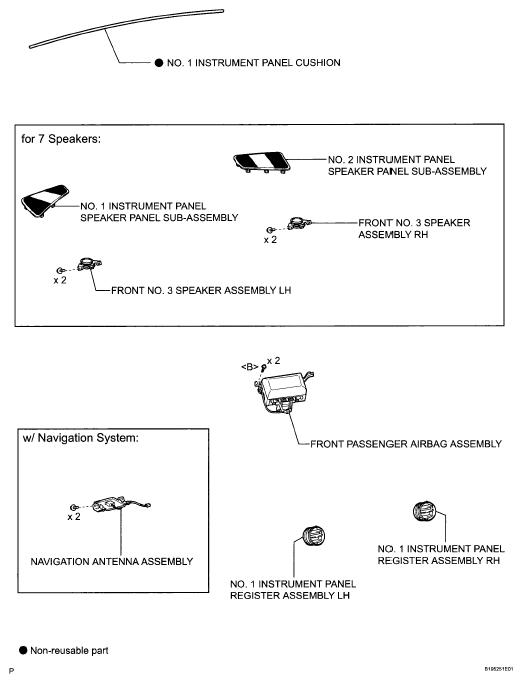

Fig 6: Identifying Upper Instrument Panel Components (6 Of 6)
