Lower Instrument Panel: Reassembly

  1. INSTALL GLOVE COMPARTMENT DOOR STOPPER SUB-ASSEMBLY
    1. Engage the claw and install the glove compartment door stopper sub-assembly.

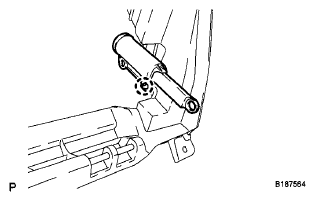

    Fig 1: Identifying Glove Compartment Door Stopper Sub-Assembly And Claw
    G06037889Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
