Lower Instrument Panel: Components

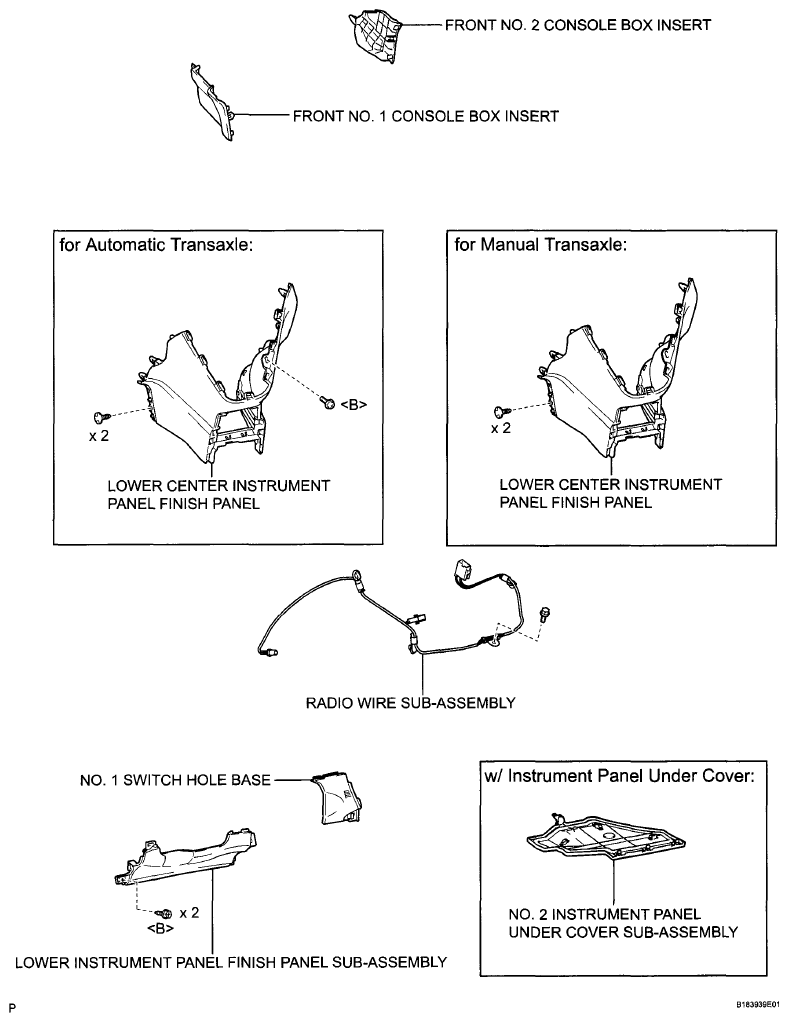

Fig 1: Lower Instrument Panel Replacement Components With Torque Specifications (1 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Lower Instrument Panel Components (2 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Identifying Lower Instrument Panel Components (3 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Lower Instrument Panel Replacement Components With Torque Specifications (4 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Identifying Lower Instrument Panel Components (5 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Identifying Lower Instrument Panel Components (6 Of 9)

Fig 7: Identifying Lower Instrument Panel Components (7 Of 9)

Fig 8: Lower Instrument Panel Replacement Components With Torque Specifications (8 Of 9)

Fig 9: Identifying Lower Instrument Panel Components (9 Of 9)
