Front Console Box: Reassembly

  1. INSTALL LOWER CONSOLE BOX
    1. Install the lower console box.
    2. Install the 5 screws.
    Fig 1: Identifying Lower Console Box With Screws
    G06037923Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL CONSOLE COMPARTMENT DOOR LOCK SUB-ASSEMBLY (w/o Lower Console Box)
    1. Install the console compartment door lock sub-assembly with the 2 screws.
    Fig 2: Locating Console Compartment Door Lock Sub-Assembly And Screws (W/O Lower Console Box)
    G06037920Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL CONSOLE COMPARTMENT DOOR LOCK SUB-ASSEMBLY (w/ Lower Console Box)
    1. for under tray:
      1. Install the console compartment door lock sub-assembly with the 2 screws.
      Fig 3: Identifying Console Compartment Door Lock Sub-Assembly And Screws
      G06037922Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. for console box lid:
      1. Install the console compartment door lock sub-assembly with the 2 screws.
  4. INSTALL CONSOLE BOX CARPET (w/ Lower Console Box)
    Fig 4: Locating Console Compartment Door Lock Sub-Assembly And Screws (W/O Lower Console Box)
    G06037920Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL CONSOLE COMPARTMENT DOOR CUSHION (w/o Lower Console Box)
    1. Install the 2 console compartment door cushions to the console compartment door.
    Fig 5: Locating Console Compartment Door Cushion (W/O Lower Console Box)
    G06037919Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL CONSOLE COMPARTMENT DOOR CUSHION (w/ Lower Console Box)
    1. for under tray:
      1. Install the 2 console compartment door cushions to the console compartment door.
      Fig 6: Locating Console Compartment Door Cushion (W/O Lower Console Box)
      G06037919Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. for console box lid:
      1. Install the 2 console compartment door cushions to the console compartment door.
      Fig 7: Locating Console Compartment Door Cushion (W/O Lower Console Box)
      G06037917Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL CONSOLE COMPARTMENT DOOR SUB-ASSEMBLY
    1. Install the console compartment door sub-assembly with the 2 screws.
    Fig 8: Identifying Console Compartment Door Sub-Assembly And Screws
    G06037916Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL FRONT CONSOLE END PANEL (for 2WD)
    1. Engage the 2 guides and 10 claws, and install the front console end panel.
    Fig 9: Identifying Front Console End Panel Claws And Guides
    G06037914Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL FRONT CONSOLE END PANEL (for 4WD)
    1. Engage the 2 guides and 8 claws, and install the front console end panel.
    Fig 10: Identifying Front Console End Panel Claws And Guides (4WD)
    G06037915Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL FRONT CONSOLE BOX CUP HOLDER SUB-ASSEMBLY
    1. Engage the 4 claws.

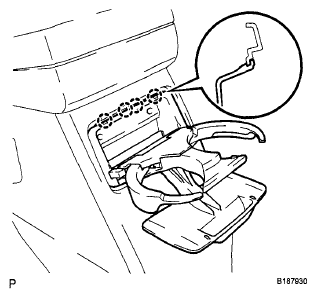

      Fig 11: Identifying Front Console Box Cup Holder Sub-Assembly And Claws
      G06037934Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the front console box cup holder sub-assembly with the 2 screws.
    Fig 12: Identifying Front Console Box Cup Holder Sub-Assembly And Screws
    G06037912Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
