Front Console Box: Disassembly

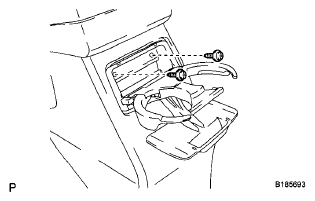

REMOVE FRONT CONSOLE BOX CUP HOLDER SUB-ASSEMBLY
1. Remove the 2 screws.

  Fig 1: Identifying Front Console Box Cup Holder Sub-Assembly And Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a screwdriver, disengage the 4 claws and remove the front console box cup holder sub-assembly.
  HINT:

  Tape the screwdriver tip before use.

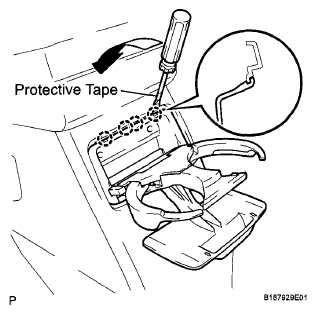

Fig 2: Removing Front Console Box Cup Holder Sub-Assembly Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

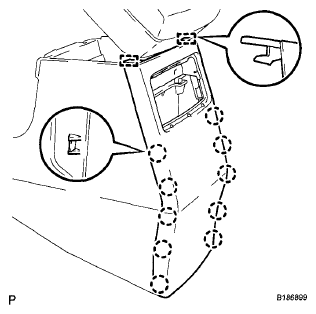

REMOVE FRONT CONSOLE END PANEL (for 2WD)
1. Disengage the 10 claws and 2 guides, and remove the front console end panel.
Fig 3: Identifying Front Console End Panel Claws And Guides
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

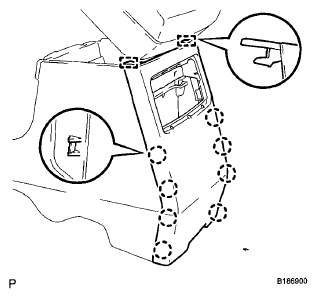

REMOVE FRONT CONSOLE END PANEL (for 4WD)
1. Disengage the 8 claws and 2 guides, and remove the front console end panel.
Fig 4: Identifying Front Console End Panel Claws And Guides (4WD)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

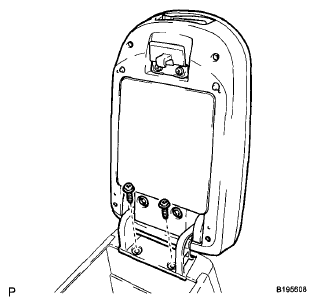

REMOVE CONSOLE COMPARTMENT DOOR SUB-ASSEMBLY
1. Remove the 2 screws and the console compartment door sub-assembly.
Fig 5: Identifying Console Compartment Door Sub-Assembly And Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

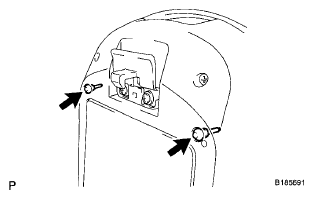

REMOVE CONSOLE COMPARTMENT DOOR CUSHION (w/o Lower Console Box)
1. Remove the 2 console compartment door cushions from the console compartment door.
Fig 6: Locating Console Compartment Door Cushion (W/O Lower Console Box)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CONSOLE COMPARTMENT DOOR CUSHION (w/ Lower Console Box)
1. for console box lid:
  1. Remove the 2 console compartment door cushions from the console compartment door.
  Fig 7: Locating Console Compartment Door Cushion (W/O Lower Console Box)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

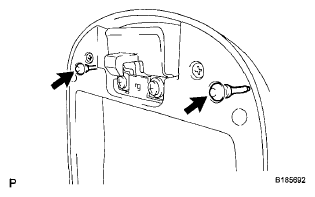

2. for under tray:
  1. Remove the 2 console compartment door cushions from the console compartment door.
REMOVE CONSOLE BOX CARPET (w/ Lower Console Box)

Fig 8: Locating Console Compartment Door Cushion (W/O Lower Console Box)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

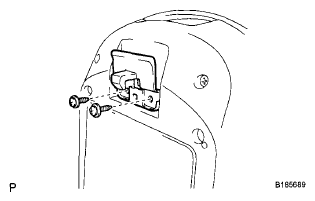

REMOVE CONSOLE COMPARTMENT DOOR LOCK SUB-ASSEMBLY (w/o Lower Console Box)
1. Remove the 2 screws and the console compartment door lock sub-assembly.
Fig 9: Locating Console Compartment Door Lock Sub-Assembly And Screws (W/O Lower Console Box)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CONSOLE COMPARTMENT DOOR LOCK SUB-ASSEMBLY (w/ Lower Console Box)
1. for console box lid:
  1. Remove the 2 screws and the console compartment door lock sub-assembly.
  Fig 10: Locating Console Compartment Door Lock Sub-Assembly And Screws (W/O Lower Console Box)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

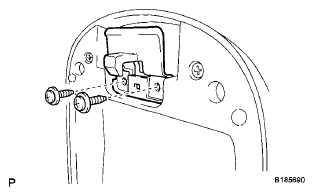

2. for under tray:
  1. Remove the 2 screws and the console compartment door lock sub-assembly.
  Fig 11: Identifying Console Compartment Door Lock Sub-Assembly And Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE LOWER CONSOLE BOX
1. Remove the 5 screws.
2. Remove the lower console box.

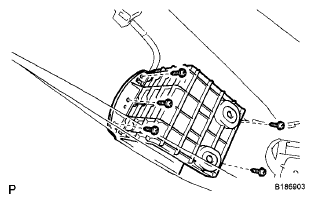

Fig 12: Identifying Lower Console Box With Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
