Transponder Key Ecu: Removal

  1. REMOVE AIR CONDITIONING UNIT
    1. Remove the air conditioning unit (See REMOVAL ).
  2. REMOVE TRANSPONDER KEY ECU
    1. Disconnect the connector.
    2. Disengage the clamp.
    3. Remove the bolt and the transponder key ECU.

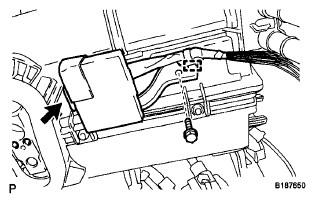

    Fig 1: Locating Transponder Key ECU And Bolt
    G06036563Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
