Transponder Key Amplifier: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
  2. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY  (See REMOVAL )
  3. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY  (See REMOVAL )
  4. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle)  (See REMOVAL )
  5. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transaxle)  (See REMOVAL )
  6. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (for Manual Transaxle)  (See REMOVAL )
  7. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (for Automatic Transaxle)  (See REMOVAL )
  8. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY  (See REMOVAL )
  9. REMOVE FRONT UPPER CONSOLE BOX  (See REMOVAL )
  10. REMOVE NO. 2 SWITCH HOLE BASE  (See REMOVAL )
  11. REMOVE CONSOLE BOX CARPET
  12. REMOVE FRONT CONSOLE BOX ASSEMBLY (for 2WD)  (See REMOVAL )
  13. REMOVE FRONT CONSOLE BOX ASSEMBLY (for 4WD)  (See REMOVAL )
  14. REMOVE FRONT NO. 1 CONSOLE BOX INSERT  (See REMOVAL )
  15. REMOVE FRONT NO. 2 CONSOLE BOX INSERT  (See REMOVAL )
  16. REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL (for Manual Transaxle)  (See REMOVAL )
  17. REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL (for Automatic Transaxle)  (See REMOVAL )
  18. REMOVE NO. 1 SWITCH HOLE BASE  (See REMOVAL )
  19. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY  (See REMOVAL )
  20. REMOVE LOWER NO. 3 STEERING WHEEL COVER  (See REMOVAL )
  21. REMOVE LOWER NO. 2 STEERING WHEEL COVER  (See REMOVAL )
  22. REMOVE STEERING PAD  (See REMOVAL )
  23. REMOVE STEERING WHEEL ASSEMBLY  (See REMOVAL )
  24. REMOVE LOWER STEERING COLUMN COVER  (See REMOVAL )
  25. REMOVE UPPER STEERING COLUMN COVER  (See REMOVAL )
  26. REMOVE TRANSPONDER KEY AMPLIFIER

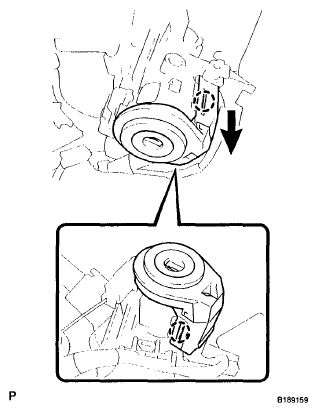

    1. Disengage the 2 claws as shown in the illustration.
      Fig 1: Removing Transponder Key Amplifier
      G06014401Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector and remove the transponder key amplifier.
    Fig 2: Locating Transponder Key Amplifier
    G06014402Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
