Inspection Procedure

  1. CHECK THEFT WARNING ECU ASSEMBLY
    1. Measure the voltage according to the value (s) in the table below.

      Standard Voltage

      VOLTAGE SPECIFICATION

      Tester Connection Condition Specified Condition
      E72-11 (+B1) - Body ground Always 11 to 14 V

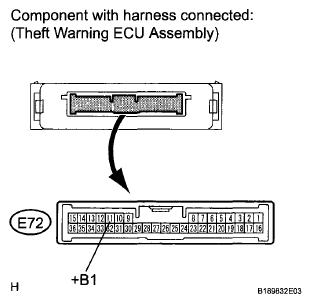

      Fig 1: Checking Theft Warning ECU Assembly
      G06036521Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: Go to step   2

      OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE (See  PROBLEM SYMPTOMS TABLE  )

  2. CHECK HARNESS AND CONNECTOR (THEFT WARNING ECU ASSEMBLY - BODY GROUND)
    1. Disconnect the E72 theft warning ECU assembly connector.
    2. Measure the voltage according to the value (s) in the table below.

      Standard Resistance

      RESISTANCE REFERENCE

      Tester Connection Condition Specified Condition
      E72-16 (E) - Body ground Always Below 1 Ω

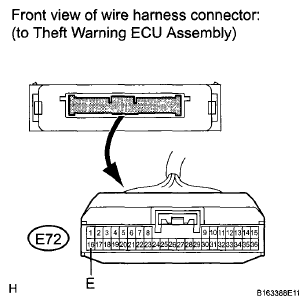

      Fig 2: Identifying E72 Theft Warning ECU Assembly Connector Terminal
      G06036522Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

      OK: Go to Next Step

  3. CHECK HARNESS AND CONNECTOR (BATTERY - INSTRUMENT PANEL JUNCTION BLOCK)
    1. Disconnect the 2B instrument panel junction block connector.
    2. Measure the voltage according to the value (s) in the table below.

      Standard Voltage

      VOLTAGE SPECIFICATION

      Tester Connection Condition Specified Condition
      2B-30 - Body ground Always 11 to 14 V

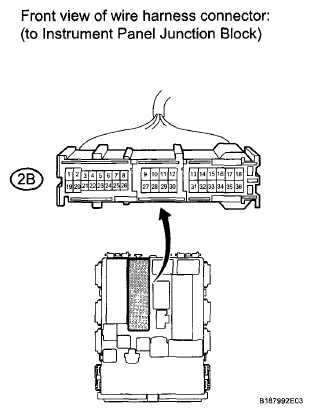

      Fig 3: Identifying 2B Instrument Panel Junction Block Connector Terminal
      G06036523Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: REPAIR OR REPLACE HARNESS OR CONNECTOR OR SHORT PIN OR ECU-B

      OK: Go to Next Step

  4. CHECK INSTRUMENT PANEL JUNCTION BLOCK (POWER SOURCE)
    1. Reconnect the 2B instrument panel junction block connector.
    2. Measure the voltage according to the value (s) in the table below.

      Standard Voltage

      VOLTAGE SPECIFICATION

      Taster Connection Condition Specified Condition
      2H-12 - Body ground Always 11 to 14 V

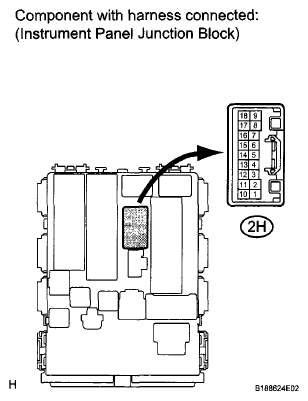

      Fig 4: Identifying Instrument Panel Junction Block Connector Terminal
      G06036524Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: REPLACE MAIN BODY ECU (INSTRUMENT PANEL JUNCTION BLOCK)

      OK: Go to Next Step

  5. CHECK HARNESS AND CONNECTOR (INSTRUMENT PANEL JUNCTION BLOCK - THEFT WARNING ECU ASSEMBLY)
    1. Disconnect the 2H instrument panel junction block and E72 theft warning ECU assembly connectors.

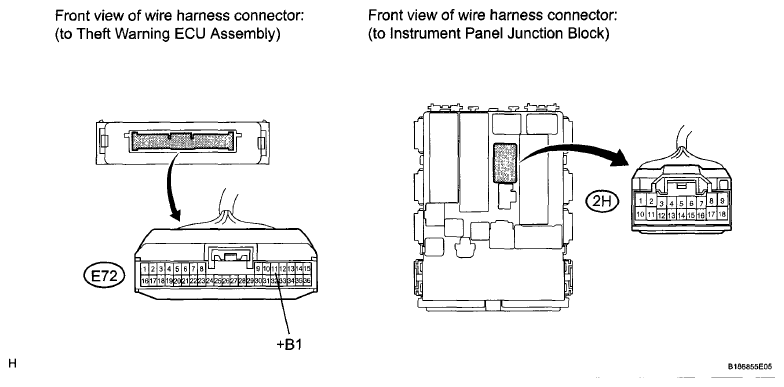

      Fig 5: Identifying 2H Instrument Panel Junction Block And E72 Theft Warning ECU Assembly Connector Terminal
      G06036525Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value (s) in the table below.

      Standard Resistance

      RESISTANCE REFERENCE

      Tester Connection Condition Specified Condition
      2H-12 - E72-11 (+B1) Always Below 1 Ω
      2H-12 - Body ground Always 10 kΩ or higher

      NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

      OK: REPLACE THEFT WARNING ECU ASSEMBLY (See  THEFT WARNING ECU  )
