Security Indicator Light Circuit: Wiring Diagram

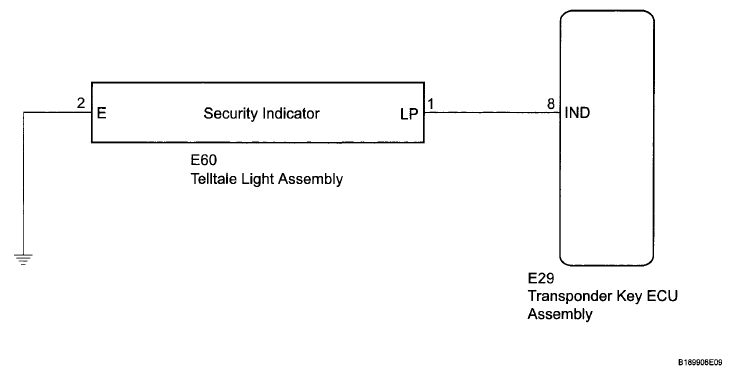

Fig 1: Security Indicator - Wiring Diagram

G06036483

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
