ECU Power Source Circuit: Wiring Diagram

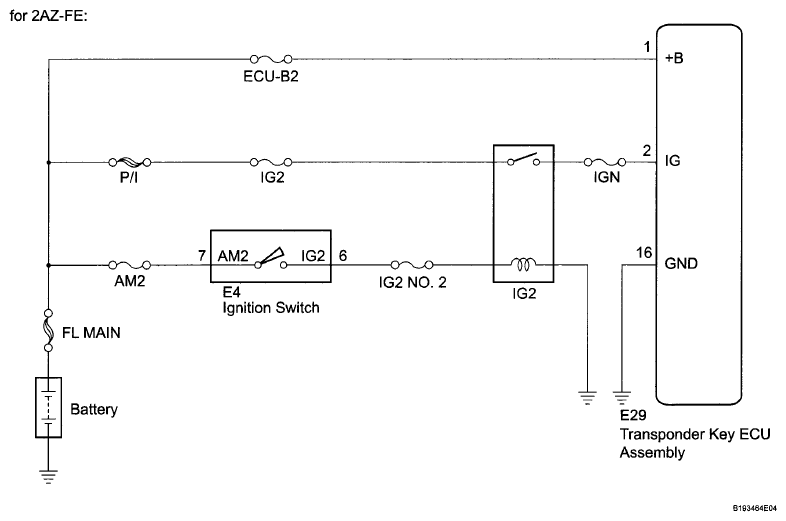

Fig 1: Ignition Switch - Wiring Diagram (1 Of 2)
G06036489Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

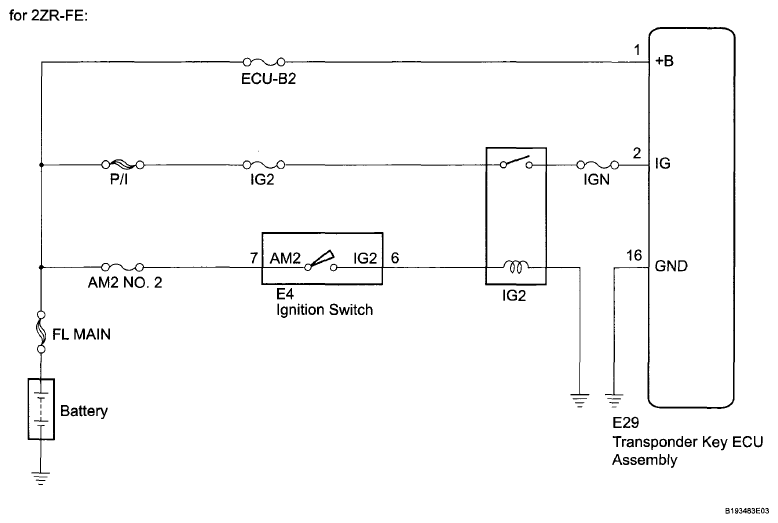

Fig 2: Ignition Switch - Wiring Diagram (2 Of 2)
G06036490Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
