Wireless Door Lock Buzzer: Inspection

1. Measure the resistance according to the value(s) in the table below.

   HINT:

   The buzzer activation circuit is built into the ECU, not into the buzzer itself. When battery voltage is applied directly to the buzzer, the buzzer will not sound.

Standard resistance

If the result is not as specified, replace the wireless door lock buzzer.

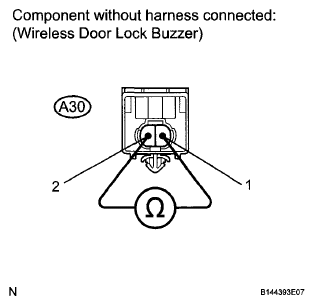

Fig 1: Inspecting Wireless Door Lock Buzzer

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
