Rear Door Lock: Inspection

INSPECT REAR DOOR LOCK ASSEMBLY LH

Apply battery voltage to the door lock motor and check the operation of the door lock motor.
OK

BATTERY VOLTAGE SPECIFICATION

Measurement Condition	Specified Condition
Battery positive (+) → Terminal 4 (L) Battery negative (-) → Terminal 1 (UL)	Lock
Battery positive (+) → Terminal 1 (UL) Battery negative (-) → Terminal 4 (L)	Unlock

If the result is not as specified, replace the door lock assembly.

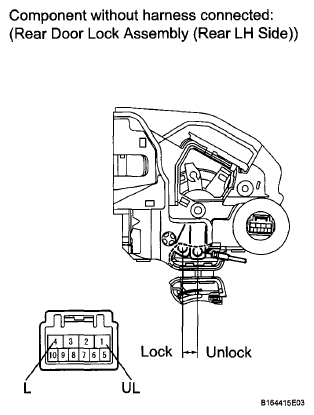

Fig 1: Identifying Rear Door Lock Assembly LH Lock And Unlock Position

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT REAR DOOR LOCK ASSEMBLY RH

Apply battery voltage to the door lock motor and check the operation of the door lock motor.
OK

BATTERY VOLTAGE SPECIFICATION

Measurement Condition	Specified Condition
Battery positive (+) → Terminal 4 (L) Battery negative (-) → Terminal 1 (UL)	Lock
Battery positive (+) → Terminal 1 (UL) Battery negative (-) → Terminal 4 (L)	Unlock

If the result is not as specified, replace the door lock assembly.

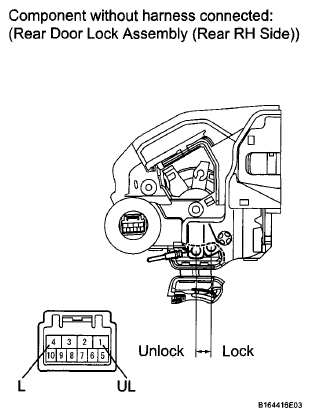

Fig 2: Identifying Rear Door Lock Assembly RH Lock And Unlock Position
