Rear Door Lock: Components

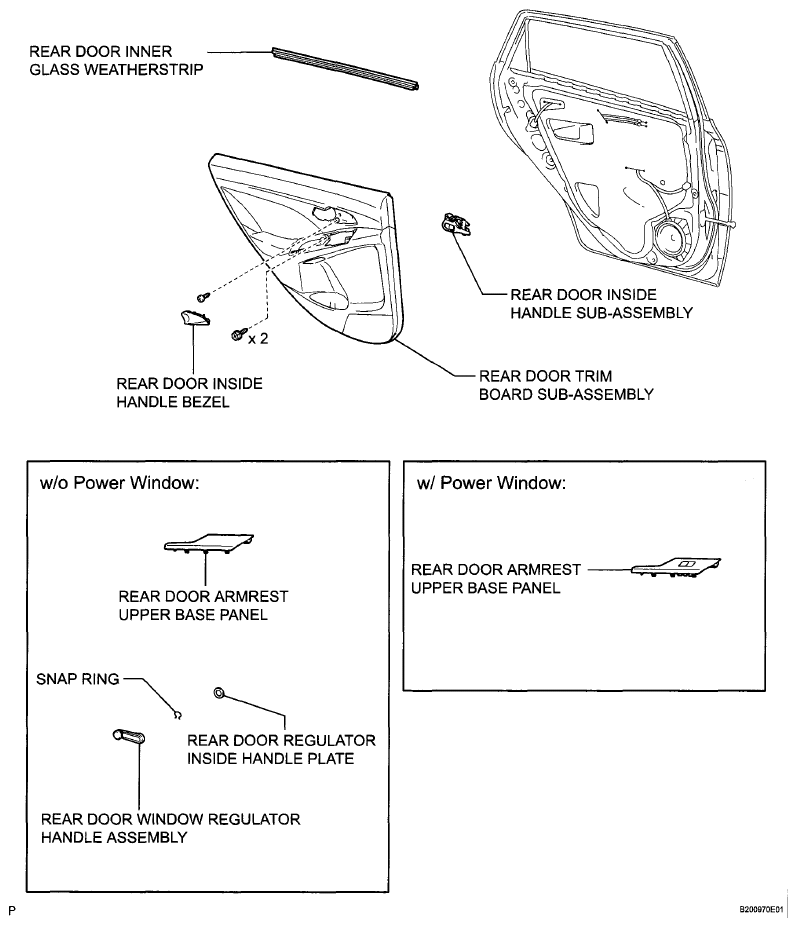

Fig 1: Identifying Rear Door Lock Components (1 Of 3)
G06036409Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

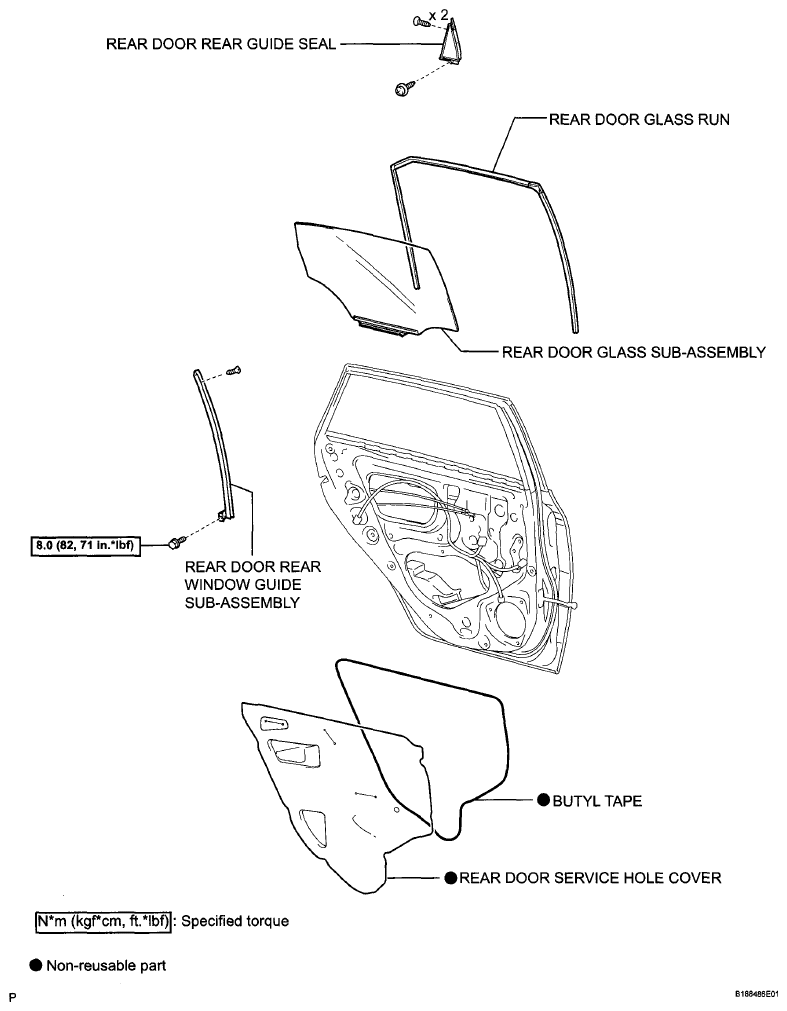

Fig 2: Rear Door Lock Replacement Components With Torque Specifications (2 Of 3)
G06036410Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

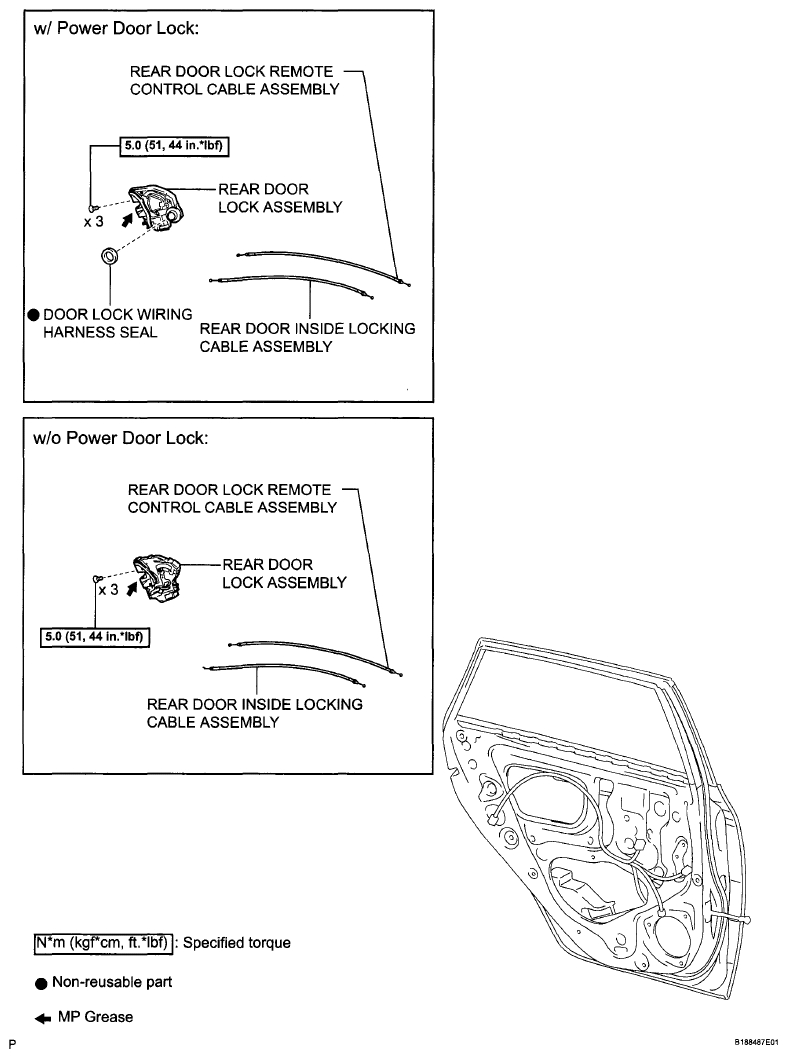

Fig 3: Rear Door Lock Replacement Components With Torque Specifications (3 Of 3)
G06036411Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
