Key Reminder Buzzer does not Sound: Wiring Diagram

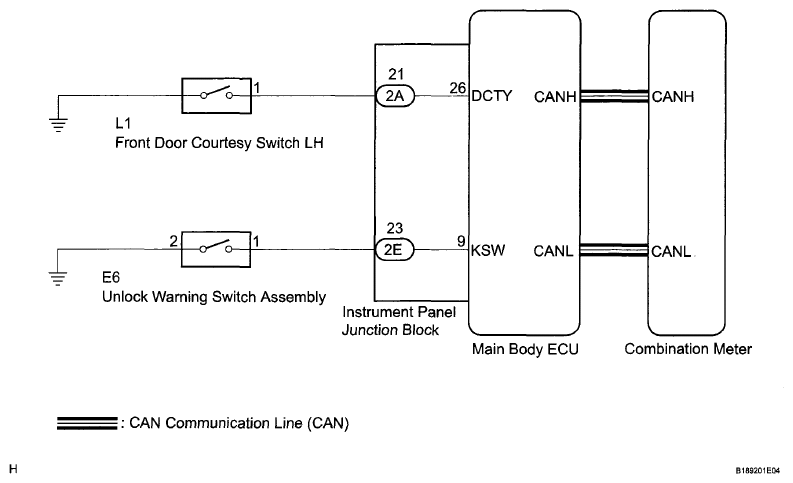

Fig 1: Key Reminder Buzzer - Wiring Diagram

G06036355

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
