Rear Wiper Rubber: Replacement

REMOVE REAR WIPER BLADE
1. Disengage the 2 pins and disconnect the rear wiper arm head cap as shown in the illustration.

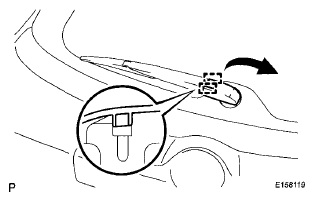

  Fig 1: Identifying Rear Wiper Arm Head Cap Pins
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Raise the wiper blade to the position where the claw detaches with a click sound, as shown in the illustration.
  NOTE: Be careful not to damage the claw.

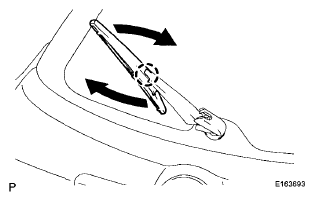

  Fig 2: Identifying Wiper Blade Claw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

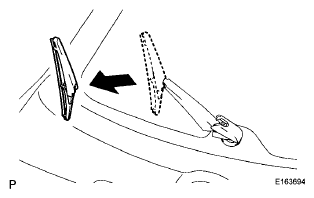

3. Pull the wiper blade straight toward the left side of the vehicle to remove it from the wiper arm.
NOTE: Do not lower the wiper arm with the wiper blade removed. The arm tip may damage the back door glass surface.

Fig 3: Identifying Wiper Blade
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR WIPER RUBBER
1. Lift and pull the end of the wiper rubber protruding from the blade stopper as shown in the illustration.
  NOTE: Do not forcibly pull out the wiper rubber. The backing plates will be deformed or the blade claws will be damaged.

  HINT:

  Lightly pushing the rubber between the ends and middle will allow it to be removed more easily.
2. Remove the rear wiper rubber backing plates.

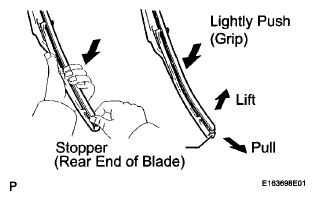

Fig 4: Lifting And Pull End Of Wiper Rubber Protruding From Blade Stopper
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR WIPER RUBBER
1. Install the rear wiper rubber backing plates as shown in the illustration.
  NOTE: Install the backing plates facing the correct direction.
2. Insert the wiper rubber from the front end of the wiper blade to the rear end through the second claw.

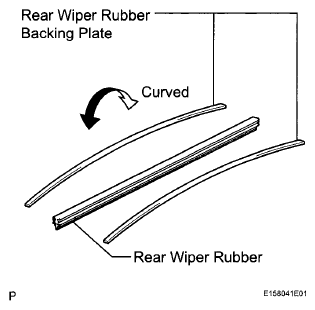

  Fig 5: Identifying Rear Wiper Rubber Backing Plates
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. After pushing the wiper rubber through the rear end claw, allow it to stick out from the rear end stopper.

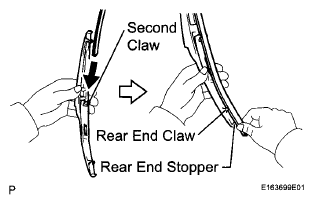

  Fig 6: Pushing Wiper Rubber Through Rear End Claw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Slide the wiper rubber through the front end claw.

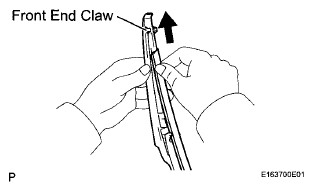

Fig 7: Sliding Wiper Rubber Through Front End Claw
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR WIPER BLADE
1. Push the wiper blade straight toward the right side of the vehicle to install it to the wiper arm.
  NOTE: Be careful not to damage the claw.

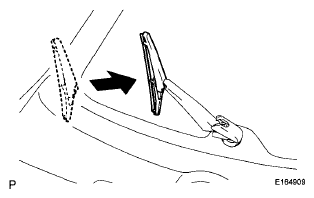

  Fig 8: Identifying Rear Wiper Blade
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the 2 pins to connect the rear wiper arm head cap as shown in the illustration.

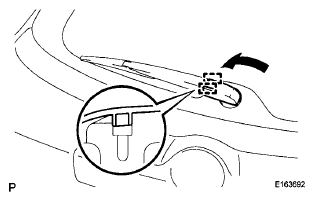

Fig 9: Identifying Rear Wiper Arm Head Cap Pins
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
