Tire Pressure Warning Reset Switch: Components

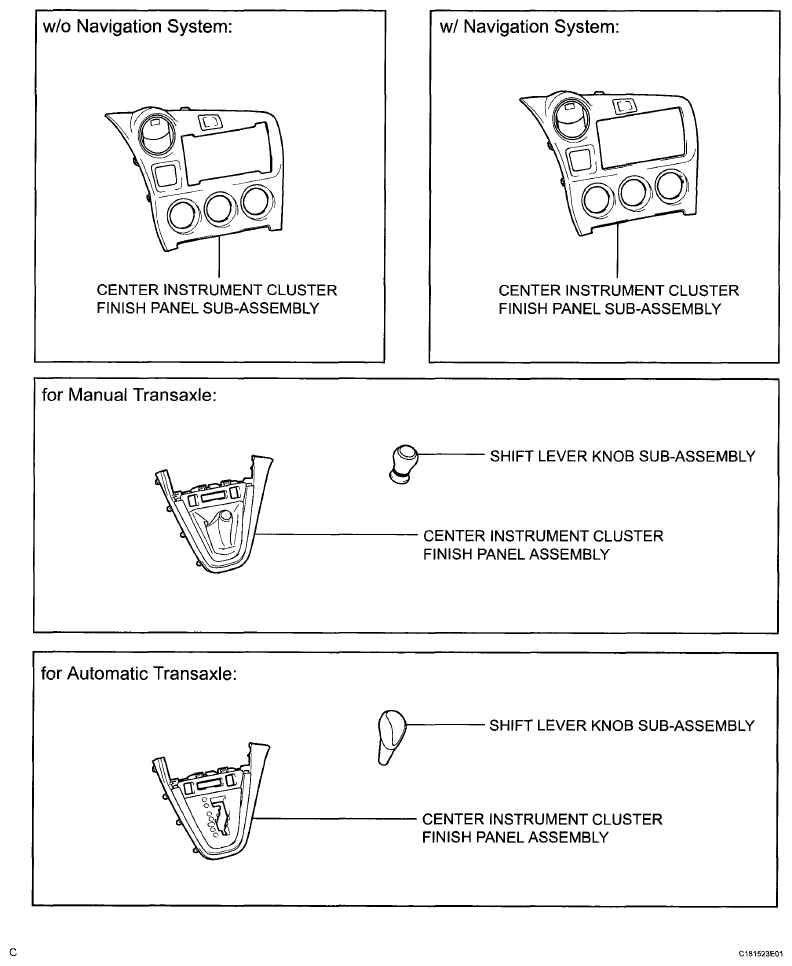

Fig 1: Identifying Tire Pressure Warning Reset Switch Components (1 Of 3)
G06034843Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

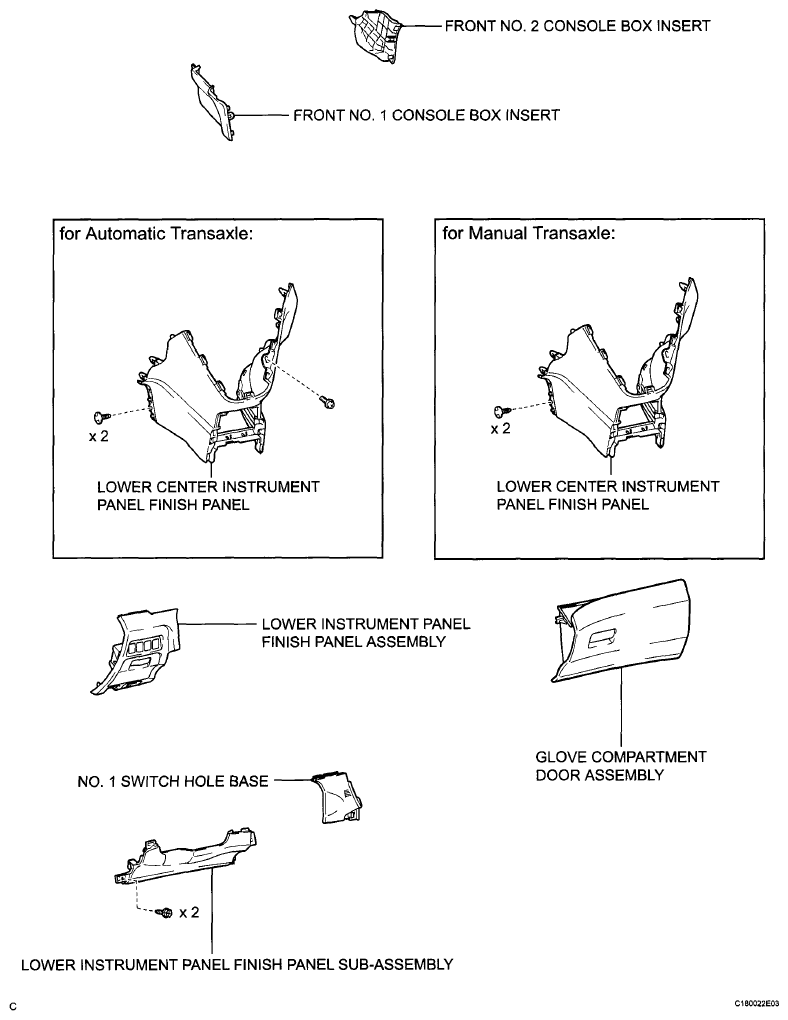

Fig 2: Identifying Tire Pressure Warning Reset Switch Components (2 Of 3)
G06034844Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

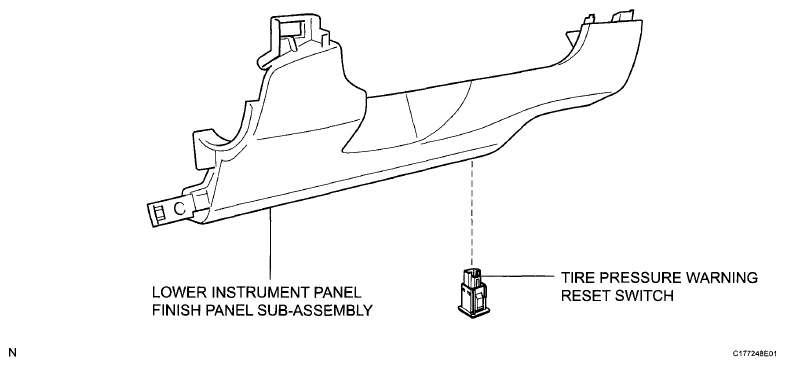

Fig 3: Identifying Tire Pressure Warning Reset Switch Components (3 Of 3)
G06034845Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
