Amplifier Antenna: Removal

HINT:

Refer to the procedures up to Remove Roof Headlining Assembly (See REMOVAL ).

1. Remove the roof antenna pole sub-assembly by turning it in the direction of the arrow shown in the illustration.

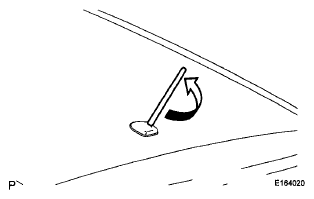

   Fig 1: Removing Roof Antenna Pole Sub-Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the nut.

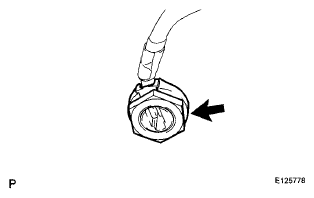

   Fig 2: Locating Amplifier Antenna Assembly Nut

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the antenna wire from the 4 clamps.
   Fig 3: Identifying Antenna Wire Clamps

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disengage the 2 claws and remove the amplifier antenna assembly.
   Fig 4: Identifying Amplifier Antenna Assembly Claws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
